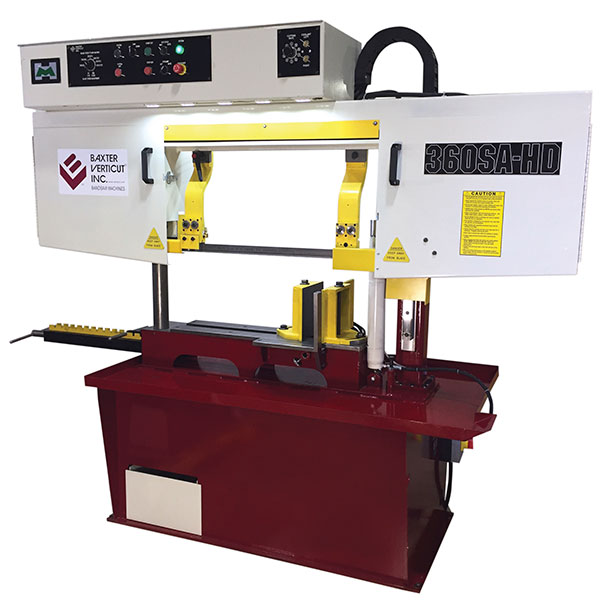

BAXTER - 360SAHD

Double column machine provides maximum capacity and rigidity
Design utilizes linear bearings for high stiffness and smooth motion
Saw up travel can be set to minimize distance between the blade and the top of the material
Saw down travel can be set to allow notching of blocks
Semi-automatic cut cycle
Manual saw control, saw up, rapid saw down, saw cut
Cutting feed rate hydraulically adjusted
Load sensing valve to stop feed, if the blade starts to overload (typically cutting structural shapes)
Power disconnect on machine
Mitre cuts up to 45° by swiveling vise
Ductile iron wheels
Blade guides are carbide faced with rollers to remove blade twist and dampen vibration
Gear box is heavy duty high efficiency with planetary gear supported on taper roller bearings, oil bath lubrication
All bearings are totally enclosed and lubricated for life
Electric system uses only CSA/UL approved components and is electrically approved

CUTTING CAPACITY	METRIC	IMPERIAL
Round at 90°	ø360 mm	ø14"
Round at 45°	ø360 mm	ø14"
Rectangular	360 x 480 mm	14 x 19"
SPECIFICATIONS
Blade size	34 x 4420 mm	1-1/4" x 14'6"
Blade speeds	18 - 122 M/min	60 - 400'/min
Blade tension (spring compensated)	172 MPa	25000 psi
Blade guides	carbide with rollers	carbide with rollers
Blade drive motor	3.7kW	5hp
Hydraulic drive	.75kW	1hp
Table height	760 mm	30"
Max work load	1360 kg	3000 lb
GENERAL
Electrical rating	575V 5.7Amp 3ph 60Hz	575V 5.7Amp 3ph 60Hz
Electrical approval	CSA SPE-1000	CSA SPE-1000
PHSR exemption letter	valid in Ontario	valid in Ontario
Machine weight	720 kg	1600 lb
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.
