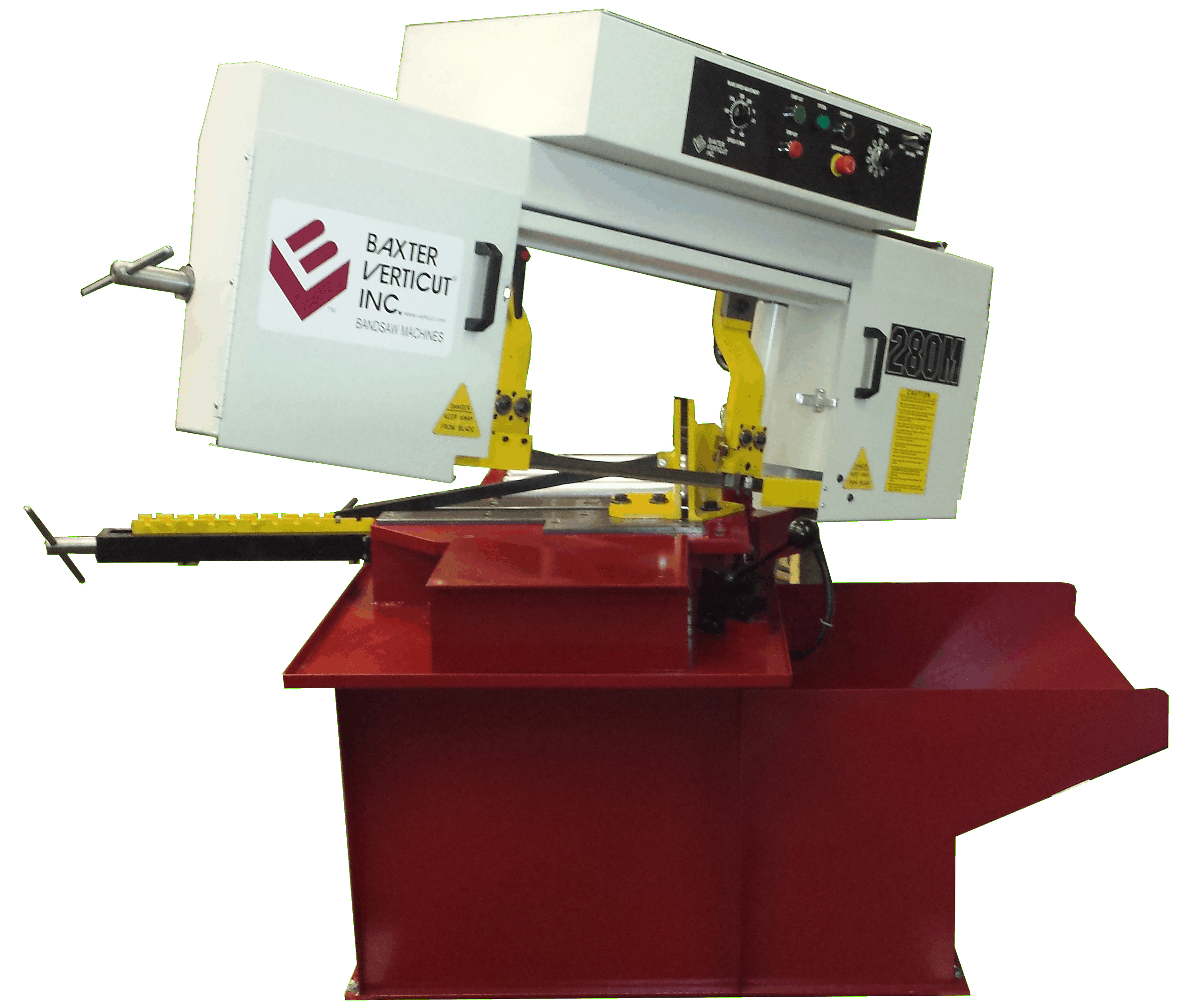

BAXTER - 280M

Scissor type saw with heavy duty all welded design for rigidity and strength
Saw frame swings 45° allowing mitre cutting without swinging the material
Cam lock of saw frame with frame angle indicating scale, hard stops at 0° and 45°
Large base for stability with large coolant catch area
Pivot uses taper roller bearings for a highly rigid machine with smooth low friction movement
Conveniently located control station
Cutting feed hydraulically regulated with quick shut off to avoid valve adjustments
Power disconnect on machine
Ductile iron wheels
Blade guides are carbide faced with rollers to remove blade twist and dampen vibration
Gear box designed for heavy duty bandsaw machines by precision worm shaft on taper roller bearings and phosphorous bronze worm gear set supported on sealed ball bearings, oil bath lubricated
All bearings are totally enclosed and lubricated for life
Electric system uses only CSA/UL approved components and is electrically approved

CUTTING CAPACITY	METRIC	IMPERIAL
Round at 90°	ø280 mm	ø11"
Round at 45°	ø250 mm	ø10"
Rectangular (max width)	230 x 405 mm	9 x 16"
Rectangular (max height)	280 x 355 mm	11 x 14"
SPECIFICATIONS
Blade size	27 x 3660 mm	1" x 12'
Blade speeds	18 - 122 M/min	60 - 400'/min
Blade tension (spring compensated)	172 MPa	25000 psi
Blade guides	carbide with rollers	carbide with rollers
Blade drive motor	1.5kW	2hp
Table height	780 mm	30 3/4"
Max work load	1360 kg	3000 lb
GENERAL
Electrical rating	575V 2.6Amp 3ph 60Hz	575V 2.6Amp 3ph 60Hz
Electrical approval	CSA SPE-1000	CSA SPE-1000
PHSR exemption letter	valid in Ontario	valid in Ontario
Machine weight	614 kg	1350 lb
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.
