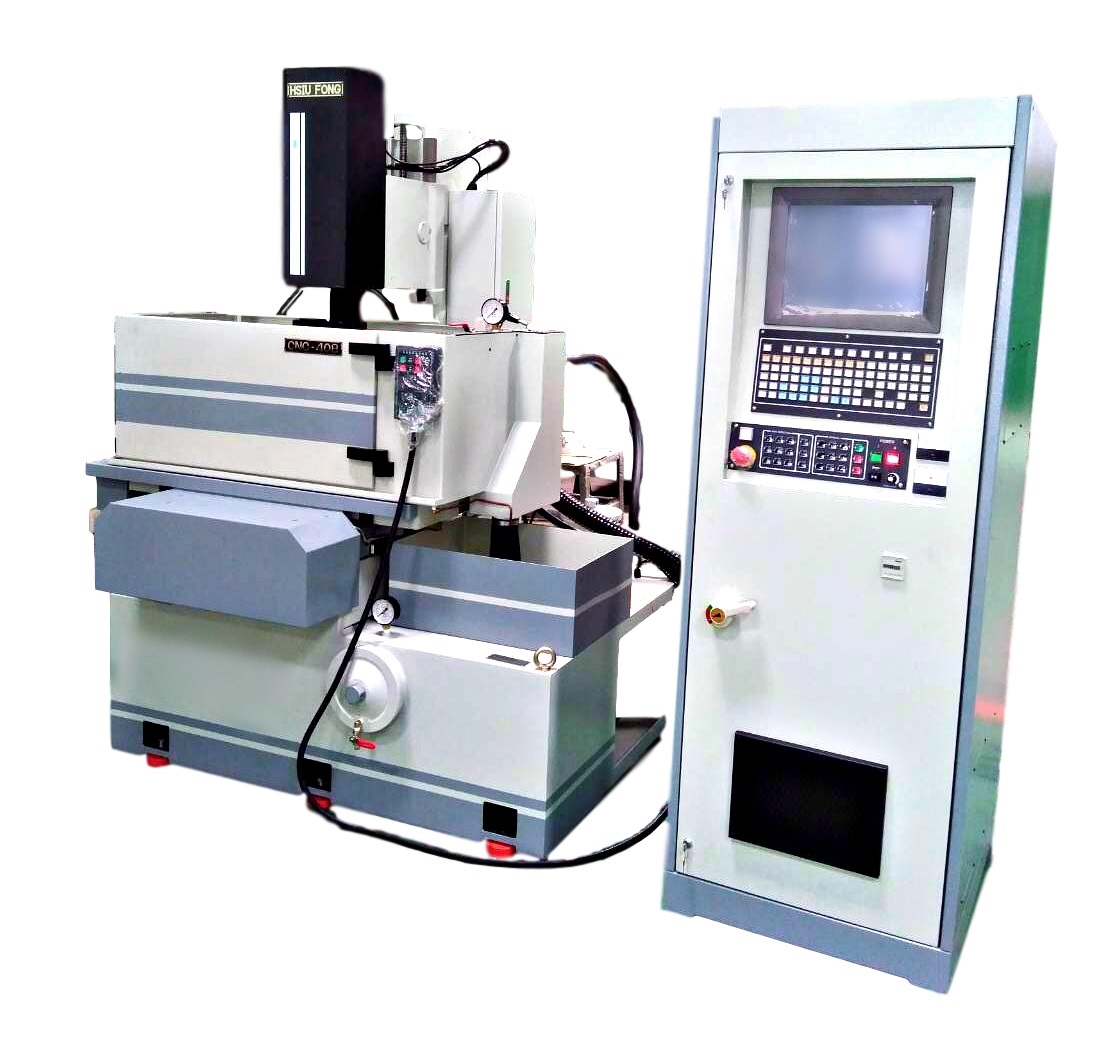

Spark erosion machining for challenging pieces with intricate detail.
| CAPACITY | METRIC | IMPERIAL | |
| Max current output | 100A | 100A | |
| Max electrode load | 500 kg | 1102 lb | |
| Max workpiece weight | 7000 kg (fluid immersed) 14000 kg | 15432 lb (fluid immersed) 30864 lb | |
| Work table size (L x W) | 1200 x 750 mm | 47.24 x 29.52" | |
| Work table type | fixed | fixed | |
| Work tank volume (w x d x h) | 1400 x 2000 x 600 mm | 55.11 x 78.73 x 23.62" | |
| Work tank type | door opening | door opening | |
| Distance between work table & electrode holder plate | 550 - 1050 mm | 21.65 -41.33" | |
| Electrode holder plate size | 300 x 200 mm | 11.81 x 7.87" | |
| TRAVELS | |||
| X-Axis | 800 mm | 31.49" | |
| Y-Axis | 1200 mm | 47.24" | |
| Z-Axis quill stroke | 500 mm | 19.68" | |
| GENERAL | |||
| Dielectric fluid tank volume | 3077 L | 813 US gal | |
| Dielectric pump flow | 80 L/min | 21.13 US gal/min | |
| Dielectric pump | 0.375kW | 1/2hp | |
| Rapid fill pump | 0.75kW | 1hp | |
| Rapid fill pump flow | 240 L/min | 63.40 US gal/min | |
| Erosion motor type | AC Servo | AC Servo | |
| Electrical approval | CSA SPE-1000 | CSA SPE-1000 | |
| Electrical rating | 600V 30Amp 60Hz 3Ph | 600V 30Amp 60Hz 3Ph | |
| Weight | 10000 kg | 22046 lb | |
| CONTROLLER | |||
| CNC Control | AI Function | AI Function | |
| The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice. | |||
