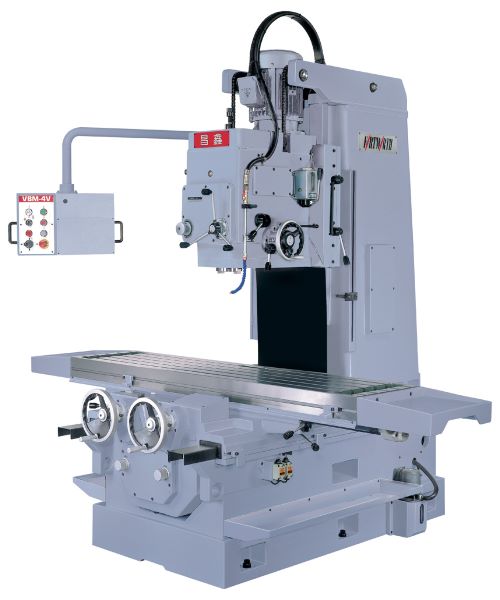

FORTWORTH - CS-VBM-4V

The column is made out of box shape high tensile strength casting reinforced with honeycombed ribbings. It offers excellent vibration dampening features and great mechanical and thermal stability.
The saddle and vertical head travels on hardened and precision ground box ways that offer maximum rigidity.
The vertical head is equipped with an ISA50 fixed spindle for heavy duty milling.
Besides, a manual coarse and fine feed on the vertical head, also equipped with power feed for easy boring operation.
A tri-lever handle mounted in the front for easy operation performs manual rapid movement of the head.
The automatic lubrication system lubes the table, saddle and head ways.
The extensive vertical head travel along with various feed rates offer capability for precise boring operations.
X and Y-Axis are equipped with metric ballscrews and AC servo motor.

Fortworth CS-VBM-5VL Demo

TRAVELS	METRIC	IMPERIAL
X-Axis longitudinal	1200 mm	47.24"
Y-Axis cross	450 mm	17.71"
Z-Axis vertical head travel	550 mm	21.65"
W-Axis horizontal head travel	-	-
Guideway type X / Y / Z	dovetail / box / box	dovetail / box / box
Bedway type X / Y / Z	Turcite	Turcite
TABLE
Work surface	1900 x 450 mm	74.80 x 17.71"
T-slot number (width x pitch)	5 (18 x 80 mm)	5 (0.70 x 3.14")
Table top to floor	850 mm	33.46"
Max table load	1000 kg	2204 lb
VERTICAL SPINDLE
Taper	ISA50	ISA50
Spindle drive motor	10hp	10hp
Spindle speed (12-step)	45 - 1500 rpm	45 - 1500 rpm
Z-Axis feed (5-step)	0.05 - 0.2 mm/rev	0.0025 - 0.01"/rev
Spindle nose to table	100 - 650 mm	3.93 - 25.59"
Spindle nose to column surface	450 mm	17.71"
HORIZONTAL SPINDLE
Taper	-	-
Horizontal spindle drive motor	-	-
Spindle speed (12-step)	-	-
Distance between spindle centres	-	-
FEED SYSTEM
Longitudinal & cross feed	28 - 875 mm/min	1.10 - 34.44"/min
Longitudinal & cross rapid feed	2880 mm/min	113.38"/min
Horizontal head feed up & down	-	-
Horizontal head rapid feed	-	-
Change of feeds	12 steps	12 steps
Longitudinal & cross feed motor	2hp	2hp
Vertical head feed motor	-	-
Horizontal head feed motor	-	-
GENERAL
Electrical rating	600V 15Amp 3Ph 60Hz	600V 15Amp 3Ph 60Hz
Electrical approval	CSA SPE-1000	CSA SPE-1000
PHSR exemption letter	valid in Ontario	valid in Ontario
Weight	5200 kg	11464 lb
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.
