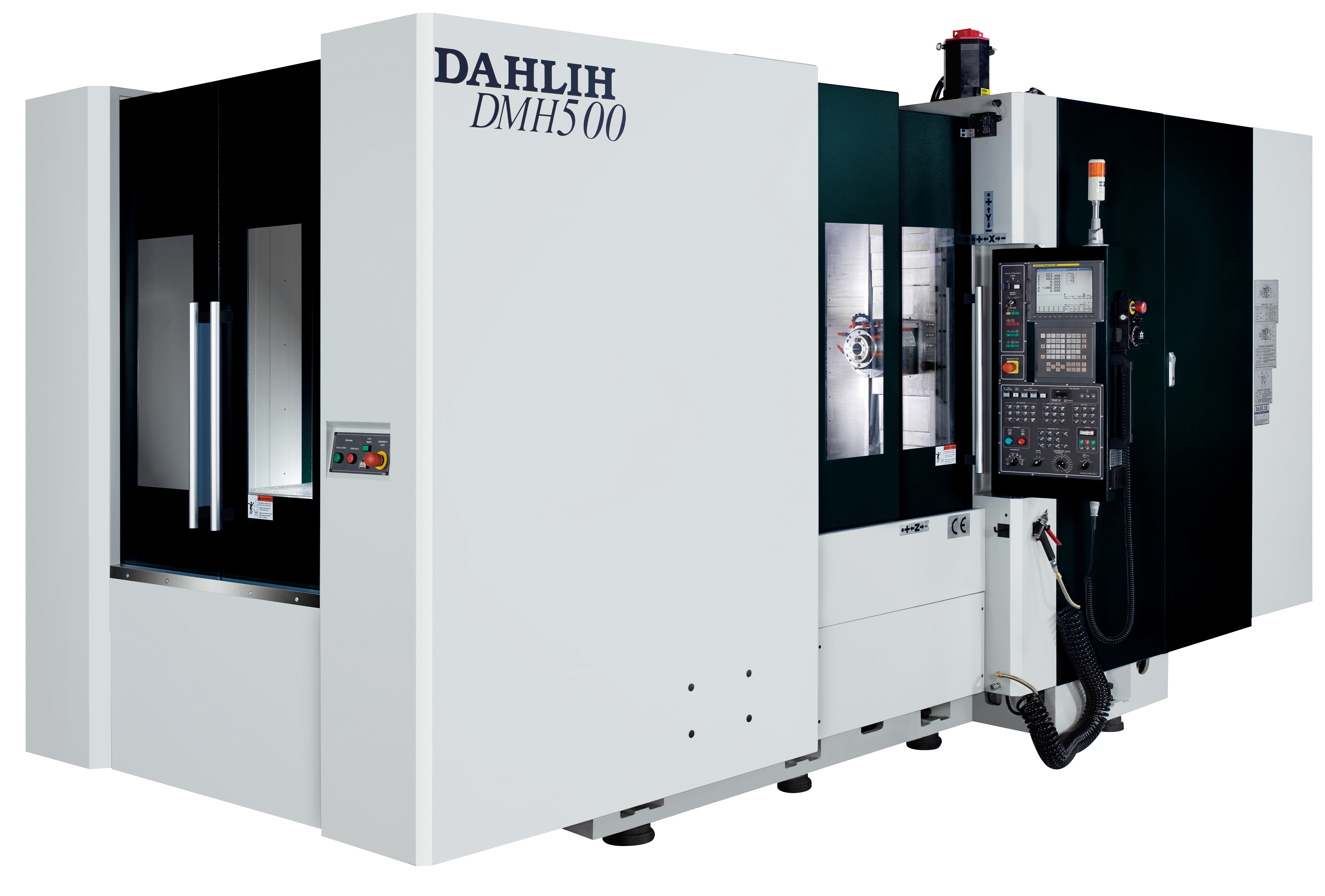

DAH LIH - DMH-500

CNC Horizontal Machining Centre

Features

A new generation of DMH machine perfected for precision parts machining and general machining.

  • A swing type APC Automatic Pallet Changer assures fast pallet changes with high pallet positioning accuracy.
  • Advanced box-in-box structural design features optimum rigidity and minimum thermal deformation.
  • Comprehensive thermal deformation control features assure maximum dependability of structural stability.
  • The major castings are designed and analyzed by advanced “Finite Element Analysis” for optimum structural rigidity and accuracy.
  • A high spindle speed option up to 15000rpm also makes the DMH ideal for high speed machining.

Dah Lih DMH-500 (022-D2-00-029 01'2021).pdf

Specifications: DAH LIH - DMH-500

Related Products:

TRAVELS METRIC IMPERIAL
X-Axis (longitudinal) 750 mm 29.52"
Y-Axis (vertical) 680 mm 26.77"
Z-Axis (cross) 650 mm 25.59"
Distance spindle nose to table centre 150 - 800 mm 5.90 - 31.49"
Distance spindle centre to table surface 50 - 730 mm 1.96 - 28.74"
Guideway type X-Axis linear roller linear roller
Guideway type Y-Axis linear roller linear roller
Guideway type Z-Axis linear roller linear roller
APC AUTOMATIC PALLET CHANGER - Swing Type
Pallet size 500 x 500 mm 19.68 x 19.68"
Min indexing angle B-Axis upgrade 0.001° upgrade 0.001°
Max table load 600 kg 1322 lb
FEEDRATES
Rapid traverse X-Axis 40 M/min 1574.79"/min
Rapid traverse Y-Axis 40 M/min 1574.79"/min
Rapid traverse Z-Axis 40 M/min 1574.79"/min
Cutting feedrate 1-18000 mm/min 1-708"/min
Min input increment 0.001 mm 0.0001"
SPINDLE
Drive system direct drive direct drive
Spindle motor (30 min rating) upgrade 15kW (18.5kW) upgrade 20hp (25hp)
Taper BBT40, Big Plus BBT40, Big Plus
Speed range upgrade 15000 rpm upgrade 15000 rpm
Max Spindle torque 47Nm 47Nm
ATC AUTOMATIC TOOL CHANGER - Arm Type
Tool magazine capacity upgrade 60 tools upgrade 60 tools
Max tool weight 8 kg 17.63 lb
Max tool length 400 mm 15.74"
Max tool diameter ø100 mm ø3.93"
Max tool diameter (adjacent empty) ø150 mm ø5.90"
Tool selection bi-directional bi-directional
DRIVE MOTORS
Feed drive X-Axis 4.0kW 5.4hp
Feed drive Y-Axis 4.0kW 5.4hp
Feed drive Z-Axis 4.0kW 5.4hp
GENERAL
Electrical approval CSA SPE-1000 CSA SPE-1000
Power required 37kVA 37kVA
Voltage required 600V or 220V 600V or 220V
Air pressure required 5-7 bar 80-110 psi
Coolant tank capacity 500 L 132 US gal
CONTROLLER
CNC Control FANUC FANUC
*Option
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.

Standard Accessories

  • Automatic pallet changer with manual rotation
  • Enclosed splash guard
  • Coolant and air gun
  • Coolant equipment
  • External air blast
  • Spindle oil chiller
  • Chip auger-spiral (screw) type
  • Chip conveyor-flat type
  • Removable MPG manual pulse generator
  • Automatic power off
  • Linear scale X, Y & Z axes
  • Electric cabinet heat exchanger
  • Call light
  • LED Work light
  • Door inter-lock safety switch
  • Levelling bolts, nuts and pads
  • Tool kit
  • Transformer

Included Accessories

  • 15000rpm direct drive spindle
  • 60-tool hydraulic type ATC
  • Continuous rotation B-Axis, 0.001°
  • Set of pull studs
  • Coolant through spindle (50 bar)
  • Automatic tool measuring device
  • Automatic workpiece measuring device

Optional Accessories

  • 90-tool hydraulic type ATC
  • BT50 10000rpm direct drive spindle
  • Extra pallet 500 x 500 mm
  • Coolant through ball screw
  • Laser auto tool measuring device (non contact)
