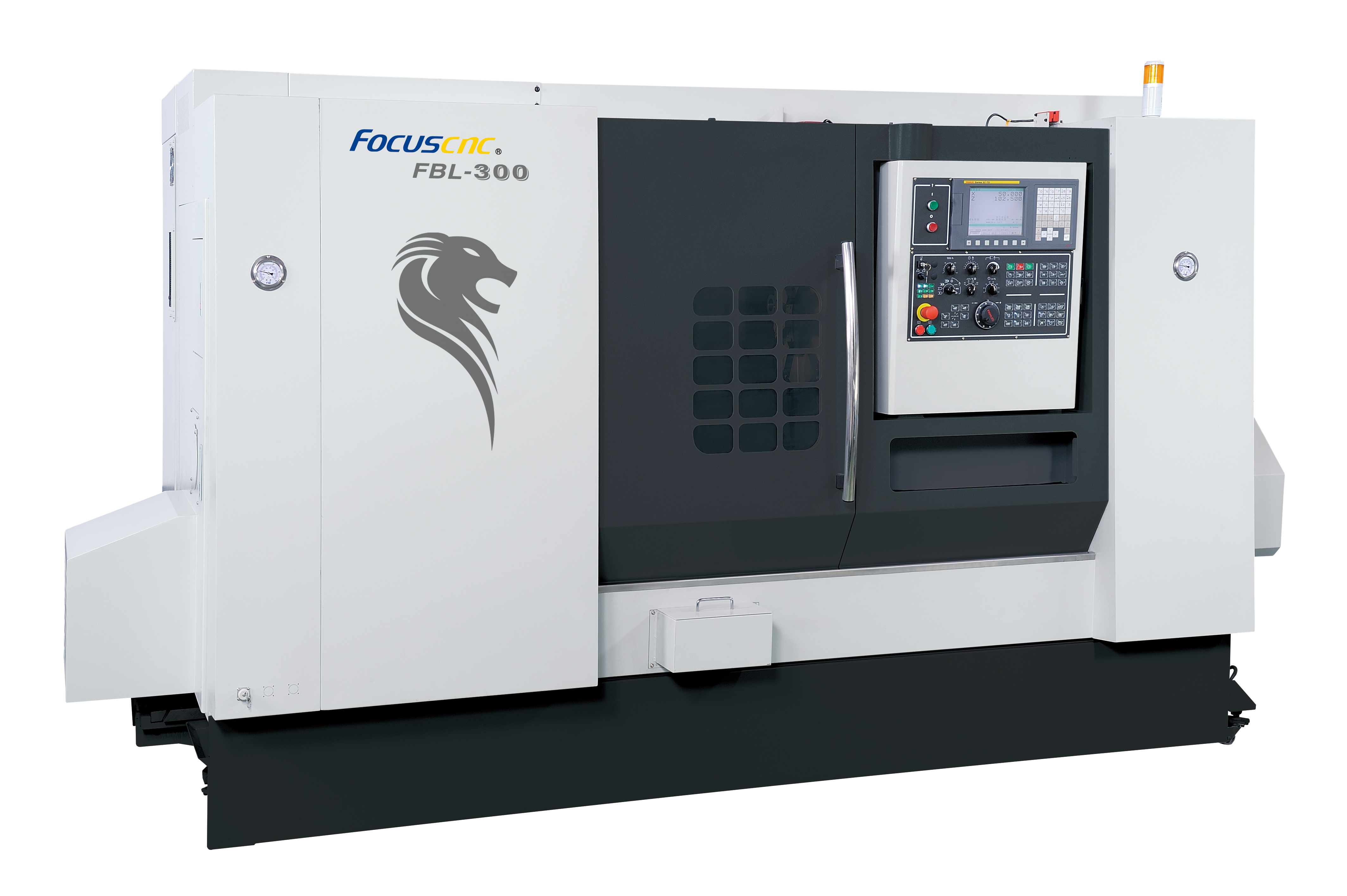

Sturdy box way model capable of low speed heavy-duty machining.
High Rigidity Spindle Structure
Powerful Turret
Programmable Tailstock System
CAPACITY | METRIC | IMPERIAL | |
Distance between centres | 1708 mm | 67.24" | |
Swing over bed | 654 mm | 25.74" | |
Swing over saddle | 418 mm | 16.45" | |
Max turning diameter | ø510 mm | ø20.07" | |
Max turning length | 1554 mm | 61.18" | |
Max bar diameter | ø77 mm | ø3.03" | |
HEADSTOCK | |||
Chuck diameter | ø254 mm (*304 mm) | ø10" (*12") | |
Spindle nose | A2-8 | A2-8 | |
Spindle hole diameter | ø88 mm | ø3.46" | |
Spindle speed | 2500 rpm | 2500 rpm | |
Spindle run out | 0.003 mm | 0.0001" | |
TRAVELS | |||
X-Axis travel | 290 mm | 11.41" | |
Z-Axis travel | 1600 mm | 62.99" | |
FEEDRATE | |||
Rapid traverse X-Axis | 18 M/min | 708.66"/min | |
Rapid traverse Z-Axis | 18 M/min | 708.66"/min | |
TURRET | |||
Number of tools | 10 (*12) | 10 (*12) | |
Turning tool size | 25 x 25 mm | 0.98 x 0.98" | |
Boring tool size | 40 mm | 1.57" | |
Tool system | – | – | |
Max rotary tool speed | – | – | |
TAILSTOCK | |||
Tailstock travel | 1510 mm | 59.44" | |
Quill travel | 130 mm | 5.11" | |
Quill diameter | ø90 mm | ø3.54" | |
Quill taper hole | MT5 | MT5 | |
Quill drive | hydraulic | hydraulic | |
Tailstock positioning | manual | manual | |
MOTORS | |||
Spindle motor (30 min rating) | 15kW (18.5kW) | 20.11hp (24.80hp) | |
Rotary tool motor | – | – | |
X-Axis Servo motor | 3kW | 4.02hp | |
Z-Axis Servo motor | 3kW | 4.02hp | |
GENERAL | |||
Electrical approval | CSA SPE-1000 | CSA SPE-1000 | |
Power required | 30kVA | 30kVA | |
Voltage required | 600V or 220V | 600V or 220V | |
Coolant pressure | 9.5 bar | 137 psi | |
Coolant tank capacity | |||
Hydraulic tank capacity | 80 L | 21.13 US gal | |
CONTROLLER | |||
CNC Control | FANUC | FANUC | |
**Option | |||
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice. Refer to literature for tool interference considerations. |
