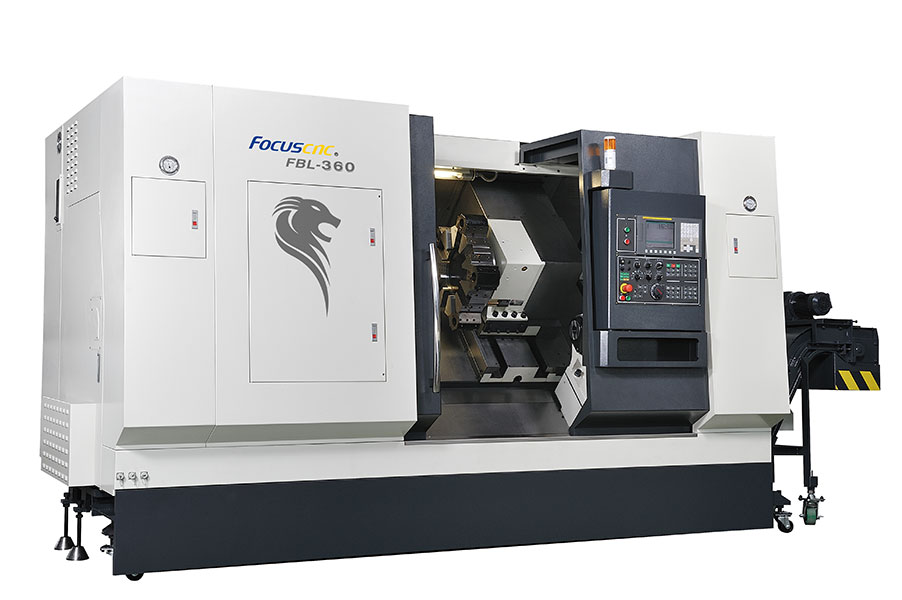

FOCUS CNC - FBL-360MC

CNC Slant Bed Lathe - Box Ways

Features

Sturdy box way model capable of low speed heavy-duty machining.

  • Armed with the latest Fanuc control, high resolution LCD screen, and multi-functional interface, for the best possible operating environment.
  • High rigidity box way with scrapped slide way and precision oil network design for superb transmission efficiency.
  • The 45° slant bed structure with a low center of gravity, for enhanced machining accuracy.

High Rigidity Spindle Structure

  • Module designed spindle and collet type bearings are used as support for enhanced accuracy and service life than stock type spindle structure.

Programmable Tailstock System

  • High rigidity machine body highlights shock-dampening property. Z-axis saddle driven by programs for automatic control of tailstock movement.
  • Optional rotating arbor available for greater workload.

Focus FBL-300 360 460 L, MC (201801 Ver.2).pdf

Specifications: FOCUS CNC - FBL-360MC

Related Products:

CAPACITY METRIC IMPERIAL
Distance between centres 1020 mm 40.15"
Swing over bed 770 mm 30.31"
Swing over saddle 550 mm 21.65"
Max turning diameter ø452 mm ø17.79"
Max turning length 739 mm 29.09"
Max bar diameter ø91 mm (*115 mm) ø3.58" (*4.52")
HEADSTOCK
Chuck diameter ø305 mm (*381 mm) ø12" (*15")
Spindle nose A2-8 (*A2-11) A2-8 (*A2-11)
Spindle hole diameter ø105 mm (*134 mm) ø4.13" (*5.27")
Spindle speed A2-8, 2500 rpm (*A2-11, 1500 rpm) A2-8, 2500 rpm (*A2-11, 1500 rpm)
Spindle run out 0.003 mm 0.0001"
TRAVELS
X-Axis travel 320 mm 12.59"
Z-Axis travel 820 mm 32.28"
FEEDRATE
Rapid traverse X-Axis 18 M/min 708.66"/min
Rapid traverse Z-Axis 18 M/min 708.66"/min
TURRET
Number of tools 12 12
Turning tool size 32 x 32 mm 1.25 x 1.25"
Boring tool size 50 mm 1.96"
Tool system BMT-75 BMT-75
Max rotary tool speed 4000 rpm 4000 rpm
TAILSTOCK
Tailstock travel 820 mm 32.28"
Quill travel 120 mm 4.72"
Quill diameter ø110 mm ø4.33"
Quill taper hole MT5 MT5
Quill drive hydraulic hydraulic
Tailstock positioning programmable programmable
MOTORS
Spindle motor (30 min rating) 18.5kW (22kW) / (*22kW (26kW)) 24hp (29hp) / (*29hp (34hp))
Rotary tool motor 7.5kW 10.05hp
X-Axis Servo motor 4kW 5.36hp
Z-Axis Servo motor 4kW 5.36hp
GENERAL
Electrical approval CSA SPE-1000 CSA SPE-1000
Power required 30kVA (*45kVA) 30kVA (*45kVA)
Voltage required 600V or 220V 600V or 220V
Coolant pressure 9.5 bar 137 psi
Coolant tank capacity
Hydraulic tank capacity
CONTROLLER
CNC Control FANUC FANUC
*Option
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.
Refer to literature for tool interference considerations.

Standard Accessories

  • 12" Hydraulic chuck
  • 12" Hard jaw set
  • 12" Soft jaw set
  • Servo power turret 12 tool
  • 2 Step gear box
  • Boring bar holder 4pc
  • Face holder
  • Tool sleeve set
  • O.D. tool holder 4pc
  • Live centre MT5
  • Coolant system
  • High pressure coolant 9.5 bar
  • Movable coolant tank
  • Centralized lubrication system
  • Chip conveyor and bucket
  • Programmable tailstock (turret driven)
  • Foot pedal for hydraulic chuck
  • Call light (3 color)
  • LED Machine lamp
  • Levelling bolts, nuts & pads
  • Tool kit

Included Accessories

  • Oil skimmer
  • Foot pedal for tailstock
  • Renishaw auto tool pre-setter
  • CE Safety door switch
  • Transformer

Optional Accessories

  • 15" Hydraulic Chuck (A2-11)
  • A2-11 Spindle nose, 1500rpm
  • Bar capacity 115mm, spindle hole diameter 134mm
  • Spindle motor upgrade 22kW (26kW), 29hp (34hp)
  • Radial power tooling holder
  • Axial power tooling holder
  • Oil mist collector
  • Manual tool setting probe
  • Automatic door (pneumatically driven)
