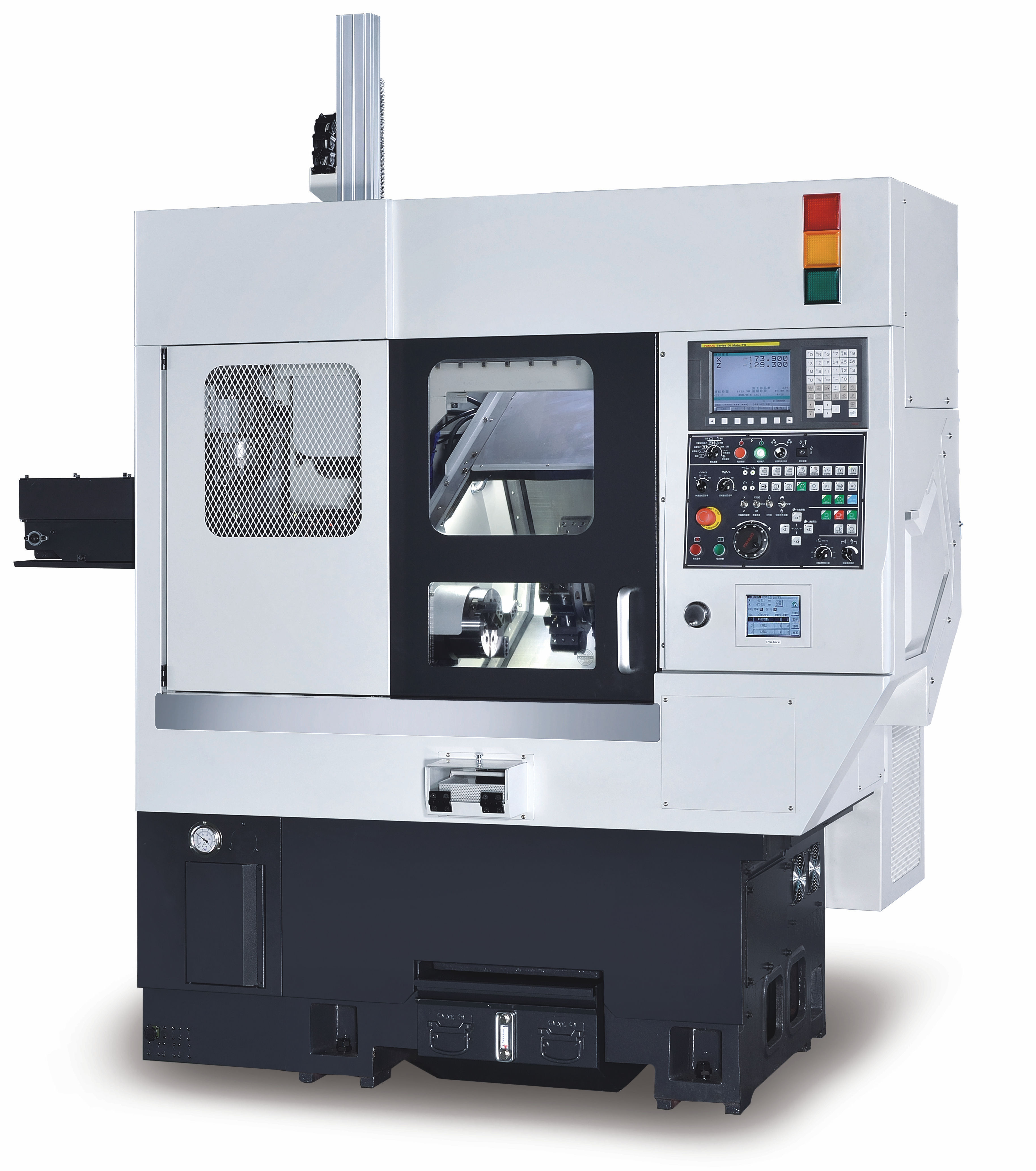

FOCUS CNC - FCL-130R

High speed precision 8 station hydraulic turret with 0.25 second tool change time. Servo turret is optional.
Roller type linear guideway system for fast motion and excellent accuracy.
A one-piece sturdy 30° slant bed body design maintains high accuracy when machining also achieving excellent chip removal effect.
Compact design minimizes floor area requirement.

CAPACITY	METRIC	IMPERIAL
Swing over bed	443 mm	17.44"
Swing over saddle	310 mm	12.20"
Max turning diameter	ø236 mm	ø9.29"
Max turning length	233 mm	9.17"
Max bar diameter	ø45 mm	ø1.77"
HEADSTOCK
Spindle nose	A2-5	A2-5
Spindle thru-hole diameter	ø56 mm	ø2.20"
Spindle speed	6000 rpm	6000 rpm
Spindle bearing diameter	ø80 mm	ø3.14"
TRAVELS
X-Axis travel	138 mm	5.43"
Z-Axis travel	250 mm	9.84"
FEEDRATE
Rapid traverse X-Axis	30 M/min	1181.10"/min
Rapid traverse Z-Axis	30 M/min	1181.10"/min
TURRET
Number of tools	8	8
Turning tool size	20 x 20 mm	0.78 x 0.78"
Boring tool size	32 mm	1.25"
TAILSTOCK
Quill travel	–	–
Quill diameter	–	–
Quill taper hole	–	–
LOAD TRANSFER SYSTEM
Number of robot axes	2	2
Max loading diameter	ø80 mm	ø3.14"
Max loading length	100 mm	3.93"
Max loading weight	1.5 kg	3.3 lb
X-Axis horizontal travel	710 mm	27.95"
Y-Axis vertical travel	650 mm	25.59"
MOTORS
Spindle motor (30 min rating)	3.7kW (5.5kW)	5.5hp (7.5hp)
X-Axis servo motor	0.75kW	1hp
Z-Axis servo motor	0.75kW	1hp
GENERAL
Electrical approval	CSA SPE-1000	CSA SPE-1000
Power required	10kVA	10kVA
Voltage required	600V or 220V	600V or 220V
Coolant pressure	10 bar	145 psi
Coolant tank capacity	95 L (*150 L)	25.09 US gal (*39.62 US gal)
Hydraulic tank capacity	30 L	7.92 US gal
CONTROLLER
CNC Control	FANUC	FANUC
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice. Refer to literature for tool interference considerations.
