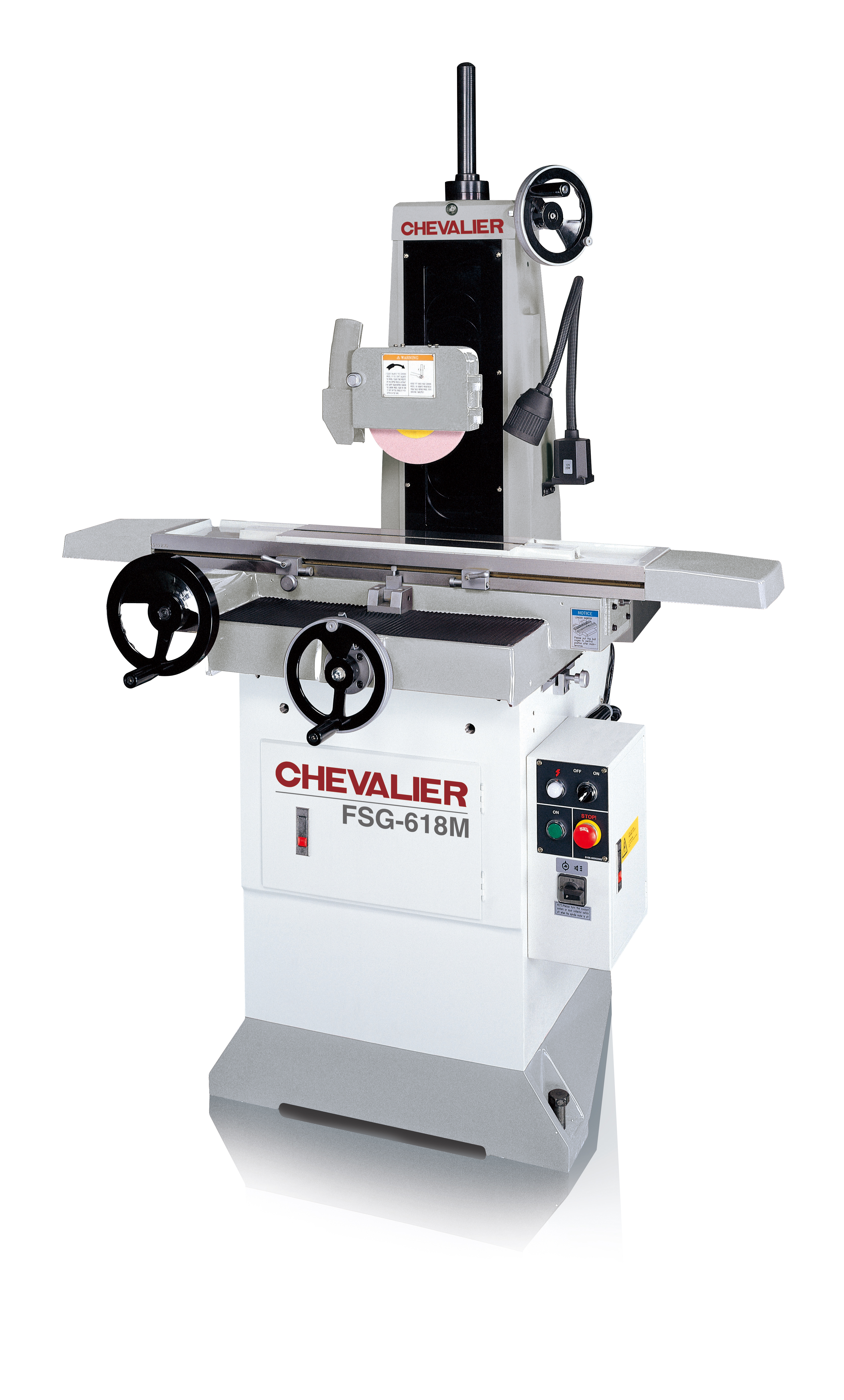

CHEVALIER - FSG-618M

All essential castings are made of high grade Meehanite cast iron that is stress relieved through annealing to eliminate internal stress.
With the greatest stiffness and stability of the castings, this machine is suitable for both precision surface grinding and form grinding.
The interlock between electrical cabinet door and power supply is established to ensure safe operation.
The spring loaded type table travel stops will dampen the over travel caused by abnormal operations.
Table traverses on linear ball bearings and D2 hardened & ground guideways.
Reinforced ribbed column with hardened & ground guideway system.
Elevating & cross-feed leadscrews are hardened & ground.
Saddle travels on Turcite-B coated and hand scraped double V guideways.
Permanently lubricated and sealed cartridge-type spindle uses two pairs of class 7 (P4) angular contact ball bearings.
2hp dynamically balanced spindle motor.
Automatic lubrication system.
Meehanite cast iron base.
A mirror surface can be accomplished on these machines accurately and efficiently.

CAPACITY	METRIC	IMPERIAL
Grinding length - longitudinal	457 mm	18"
Grinding width - crosswise	152 mm	6"
Table surface to spindle centre	450 mm	17.7"
Magnetic chuck size	150 x 450 mm	6 x 18"
Grinding wheel diameter	ø203 mm	ø8"
Grinding wheel width	12.7 - 19.05 mm	1/2 - 3/4"
Grinding wheel bore	ø31.75 mm	ø1 1/4"
Spindle speed	3450 rpm	3450 rpm
LONGITUDINAL MOVEMENT
Manual travel	482 mm	19"
CROSS MOVEMENT
Manual travel	180 mm	7"
Handwheel per revolution	3 mm	0.1"
Handwheel per graduation	0.01 mm	0.0005"
Microfeed per revolution	-	-
Microfeed per graduation	-	-
WHEELHEAD VERTICAL INFEED
Handwheel per revolution	1 mm	0.05"
Handwheel per graduation	0.005 mm	0.0001"
Microfeed per revolution	-	-
Microfeed per graduation	-	-
Rapid elevation	-	-
MOTOR
Spindle drive	1.5kW	2hp
GENERAL
Electrical rating	600V 2.2Amp 3Ph 60Hz	600V 2.2Amp 3Ph 60Hz
Electrical approval	CSA SPE-1000	CSA SPE-1000
PHSR exemption letter	valid in Ontario	valid in Ontario
Weight	674 kg	1485 lb
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.
