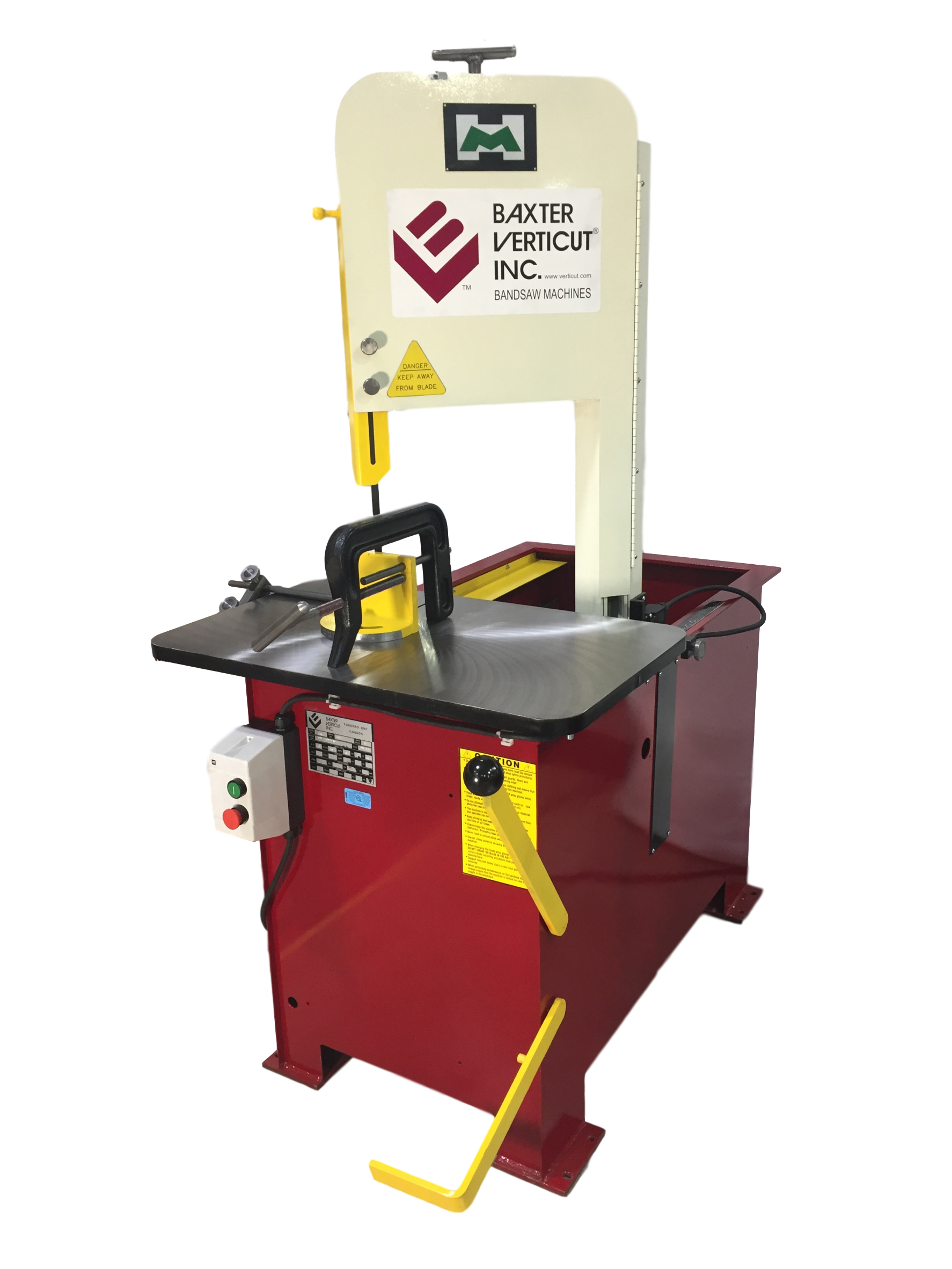

BAXTER - 115C

Can be used as a cut-off saw
Can rip cut, can notch blocks
Can contour cut as a tool room saw
Graduated scale for depth of cut
Adjustable cutting force for cutting of solids or structural shapes
Ground solid steel table
Heavy duty base for stability and strength
Ductile iron wheels
Roller guides are hardened and grooved allowing use of 1/4", 3/8", 1/2" (6.4, 9.5, 12.7, 19 mm) blades without any adjustment
Gear box designed for heavy duty bandsaw machines with precision machined worm and phosphorous bronze worm gear set supported on sealed ball bearings, oil filled
All bearings are totally enclosed and lubricated for life
Electric system uses only CSA/UL approved components and is electrically approved

CUTTING CAPACITY	METRIC	IMPERIAL
Round or square	250 mm	10"
Rectangular	250 x 330 mm	10 x 13"
Rectangular with cut piece less than 8 1/2"	330 x 330 mm	13 x 13"
Round at 45°	ø180 mm	ø7"
Rip cutting width	230 mm	9"
SPECIFICATIONS
Blade size	6 to 19 x 3050 mm	1/4 to 3/4" x 10'
Blade speeds	23, 40, 66, 107 M/min	75, 130, 215, 350'/min
Blade tension	172 MPa	25000 psi
Blade drive motor	.56kW	3/4hp
Table height	840 mm	33"
Work table	24 x 460 x 760 mm	1 x 18 x 30"
GENERAL
Electrical rating	110V 1Ph 60Hz	110V 1Ph 60Hz
Electrical approval	CSA SPE-1000	CSA SPE-1000
PHSR exemption letter	valid in Ontario	valid in Ontario
Machine weight	345 kg	760 lb
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.
