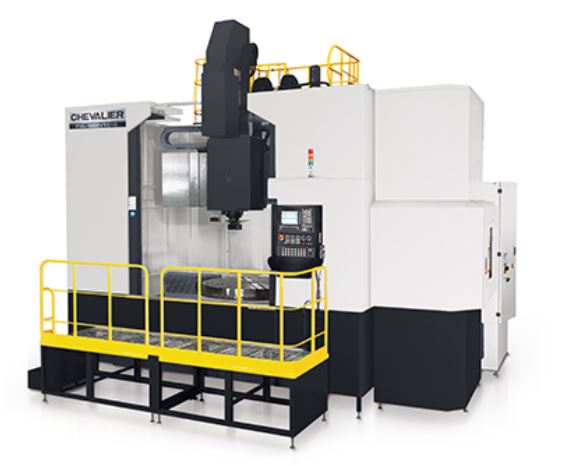

CHEVALIER - FVL-1600VTC+C

Features

Vertical Turning Lathe for heavy duty turning and multi-task machining. The series is perfect for heavy duty turning, milling, boring, grinding, drilling and thread-cutting applications.

• A patented coupling type clamping system with 8 hydraulic locking pins assists in keeping the tool in place during heavy stock removal.
• The beam elevation system with a large diameter ball screw is designed to quickly lock at any position.
• The 240mm or 280mm square RAM box-in-box design and 4-sides box ways contact give the machine excellent cutting support.
• The +C model with the live tooling function offers additional flexible machining capabilities to make more complex workpieces with one machine.

Specifications: CHEVALIER - FVL-1600VTC+C

Related Products: FVL-1250VTC FVL-1250VTC+C FVL-1600VTC FVL-1600VTC+CY FVL-2000VTC FVL-2000VTC+C MetricImperial

CAPACITY	METRIC	IMPERIAL
Max swing diameter	ø2000 mm	ø78.74"
Max turning diameter	ø2000 mm	ø78.74"
Max turning height	1350 mm	53.15"
Max torque	19030 Nm	14044.10 ft/lb
Max workpiece weight	10000 kg	22046 lb
Table diameter	ø1600 mm	ø62.99"
Low speed range	1 - 90 rpm	1 - 90 rpm
High speed range	91 - 250 rpm	91 - 250 rpm
No of range	auto 2-step	auto 2-step
SPINDLE
Spindle speed	25 - 2500 rpm	25 - 2500 rpm
Spindle taper	JIS50P-1	JIS50P-1
Max spindle torque	478 Nm	352 ft/lb
STROKE
X-Axis stroke	-840 mm/+1160 mm	-33.07 / +45.66"
Y-Axis stroke	–	–
Z-Axis stroke	900 mm	35.43"
W-Axis beam stroke	800 mm	31.49"
C-AXIS
Min index angle	0.001°	0.001°
Rotation speed	3.33 rpm	3.33 rpm
Cutting feedrate	0-1200°/min	0-1200°/min
FEEDRATES
Vertical axis equalizer	hydraulic counterbalance device	hydraulic counterbalance device
X-Axis rapid traverse	10 M/min	393.70"/min
Z-Axis rapid traverse	10 M/min	393.70"/min
Y-Axis rapid traverse	–	–
Turning cutting feedrate	0.01 - 500 mm/rev	0.0001 - 20"/rev
Milling cutting feedrate	1 - 3000 mm/min	0.03 - 118"/min
W-Axis beam rapid traverse	0.72 M/min	28.34"/min
AUTOMATIC TOOL CHANGER
Tool shank	BT50	BT50
Pull stud	JMBTA Standard 45°	JMBTA Standard 45°
Tool changer system	carousel	carousel
Tool storage capacity	16**	16**
**Turning x 7, milling x 8, protection flange x 1
Max tool diameter	220 mm	8.66"
Max tool length	500 mm	19.68"
Turning tool weight	50 kg	110.23 lb
Milling tool weight	25 kg	55.11 lb
Tool selection system	absolute tools selection	absolute tools selection
Tool change time (chip to chip)	40 sec	40 sec
MOTORS
Milling spindle motor (30 min rating)	15kW (18.5kW)	20 (25hp)
Turning table spindle motor (30 min rating)	37kW (45kW) α40	50 / 60hp α40
X-Axis drive motor	7kW	9hp
Z-Axis drive motor	7kW	9hp
Y-Axis drive motors	–	–
Hydraulic motor	7.5kW	10hp
TANK CAPACITY
Oil/grease tank capacity	6 L	1.6 US gal
Hydraulic tank	150 L	39.6 US gal
GENERAL
Electrical approval	CSA SPE-1000	CSA SPE-1000
Power required	600V or 220V	600V or 220V
Voltage required	90kVA	90kVA
Compressed air supply	5.5 kg/cm²	79 psi
Machine weight	32000 kg	70548 lb
CONTROLLER
CNC Control	FANUC	FANUC
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.

Standard Accessories

• Table mount 4 Jaw chuck
• Automatic lubrication system
• Rear chip flush system
• Chip conveyor with cart
• Coolant system
• Oil skimmer
• Hydraulic system
• Floor type 16 ATC
• Automatic power shutoff
• Electrical cabinet air conditioner
• Electrical cabinet LED Work light
• Pilot light
• LED Work light
• Levelling bolts, nuts & pads
• Tool kit
• 2500 rpm milling spindle

Included Accessories

• Transformer

Optional Accessories

• 4 Jaw manual chuck BT6-1217
• Soft jaw BT6-1219
• 90° right angle milling head BT/CT40
• Clean gun
• Workpiece cleaning gun (air or water)
• Coolant through spindle (CTS)
• 20,30,50 or 70 Bar cartridge type filter system for CTS
• 20,30,50 or 70 Bar paper type filter system for CTS
• Automatic tool measuring device
• Automatic workpiece measuring device
• Linear scales for X, Z axis
• SIEMENS 840D control
• Operator platform
• CE conformity with higher splash guard and dual check safety
• Auto front door (pneumatic)
• Gearbox for milling spindle
• Upgrade 35 hp live spindle
• Grinding function
• Arbor for grinding
• OD tool holder FST 265x32 (200X95)
• OD tool holder FST 265x32 (BT6-0539)
• OD tool holder FST 200x32 (BT6-0540)
• OD tool holder FST 200 x 32 (200x95)
• OD tool holder FST 215x32 (280x65)
• Boring bar ID tool holder BT6-0542 FL220xA32
• Boring bar ID tool holder BT6-0545 FL240x20
• Boring bar ID tool holder FL220xA32
• Boring bar ID tool holder FL280xA50
• Boring bar ID tool holder L4 50x25
• Boring bar ID tool holder FL240x20
• Boring bar ID tool holder L4 15x25
• Boring bar ID tool holder L5 15x25
• OD tool holder FST 215x32 (260x65) (L) or (R)
• OD tool holder FST 200x32 (250x95) (L) or (R)
