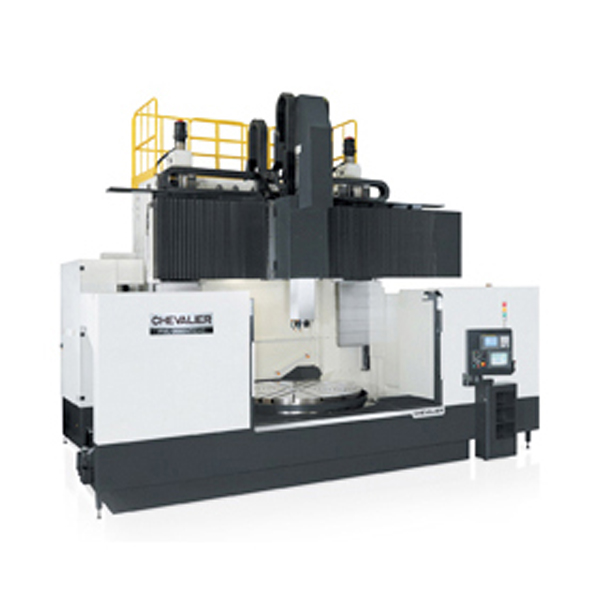

CHEVALIER - FVL-2000VTC+C

CNC Vertical Turning Lathe

Features

Vertical Turning Lathe for heavy duty turning and multi-task machining. The series is perfect for heavy duty turning, milling, boring, grinding, drilling and thread-cutting applications.

  • A patented coupling type clamping system with 8 hydraulic locking pins assists in keeping the tool in place during heavy stock removal.
  • The beam elevation system with a large diameter ball screw is designed to quickly lock at any position.
  • The 240mm or 280mm square RAM box-in-box design and 4-sides box ways contact give the machine excellent cutting support.
  • The +C model with the live tooling function offers additional flexible machining capabilities to make more complex workpieces with one machine.

Chevalier FVL-1250 1600 2000VTC Series (201708).pdf
  Focus FVL-VTC'Series Highlights

Specifications: CHEVALIER - FVL-2000VTC+C

Related Products:

CAPACITY METRIC IMPERIAL
Max swing diameter ø2500 mm ø98.42"
Max turning diameter ø2500 mm ø98.42"
Max turning height 1600 mm 62.99"
Max torque 35594 Nm 26268.30 ft/lb
Max workpiece weight 12000 kg 26455 lb
Table diameter ø2000 mm ø78.74"
Low speed range 3 - 78 rpm 3 - 78 rpm
High speed range 78 - 200 rpm 78 - 200 rpm
No of range auto 2-step auto 2-step
SPINDLE
Spindle speed 25 - 2500 rpm 25 - 2500 rpm
Spindle taper JIS50P-1 JIS50P-1
Max spindle torque 478 Nm 352 ft/lb
STROKE
X-Axis stroke -1040 mm/+1430 mm -40.94 / +56.29"
Y-Axis stroke – –
Z-Axis stroke 1050 mm 41.33"
W-Axis beam stroke 1100 mm 43.30"
C-AXIS
Min index angle 0.001° 0.001°
Rotation speed 3.33 rpm 3.33 rpm
Cutting feedrate 0-1200°/min 0-1200°/min
FEEDRATES
Vertical axis equalizer hydraulic counterbalance device hydraulic counterbalance device
X-Axis rapid traverse 10 M/min 393.70"/min
Z-Axis rapid traverse 10 M/min 393.70"/min
Y-Axis rapid traverse – –
Turning cutting feedrate 0.01 - 500 mm/rev 0.0001 - 20"/rev
Milling cutting feedrate 1 - 3000 mm/min 0.03 - 118"/min
W-Axis beam rapid traverse 0.72 M/min 28.34"/min
AUTOMATIC TOOL CHANGER
Tool shank BT50 BT50
Pull stud JMBTA Standard 45° JMBTA Standard 45°
Tool changer system carousel carousel
Tool storage capacity 16** 16**
**Turning x 7, milling x 8, protection flange x 1
Max tool diameter ø220 mm ø8.66"
Max tool length 500 mm 19.68"
Turning tool weight 50 kg 110.23 lb
Milling tool weight 25 kg 55.11 lb
Tool selection system absolute tools selection absolute tools selection
Tool change time (chip to chip) 50 sec 50 sec
MOTORS
Milling spindle motor (30 min rating) 15kW (18.5kW) 20 (25hp)
Turning table spindle motor (30 min rating) 60kW (75kW) α60 HVI 80 / 100hp α60 HVI
X-Axis drive motor 7kW 9hp
Z-Axis drive motor 5.5 kW α30 HVIS 7hp α30 HVIS
Y-Axis drive motor – –
Hydraulic motor 7.5kW 10hp
TANK CAPACITY
Oil/grease tank capacity 6 L 1.6 US gal
Hydraulic tank 150 L 39.6 US gal
GENERAL
Electrical approval CSA SPE-1000 CSA SPE-1000
Power required 600V or 220V 600V or 220V
Voltage required 90kVA 90kVA
Compressed air supply 5.5 kg/cm² 79 psi
Machine weight 45000 kg 99208 lb
CONTROLLER
CNC Control FANUC FANUC
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.

Standard Accessories

  • Table mount 4 Jaw chuck
  • Automatic lubrication system
  • Rear chip flush system
  • Chip conveyor with cart
  • Coolant system
  • Oil skimmer
  • Hydraulic system
  • Floor type 16 ATC
  • Automatic power shutoff
  • Electrical cabinet air conditioner
  • Electrical cabinet LED Work light
  • Pilot light
  • LED Work light
  • Levelling bolts, nuts & pads
  • Tool kit
  • 2500 rpm milling spindle

Included Accessories

  • Transformer

Optional Accessories

  • 90° right angle milling head BT/CT40
  • Clean gun
  • Workpiece cleaning gun (air or water)
  • Coolant through spindle (CTS)
  • 20,30,50 or 70 Bar cartridge type filter system for CTS
  • 20,30,50 or 70 Bar paper type filter system for CTS
  • Automatic tool measuring device
  • Automatic workpiece measuring device
  • Linear scales for X, Z axis
  • SIEMENS 840D control
  • Operator platform
  • CE conformity with higher splash guard and dual check safety
  • Auto front door (pneumatic)
  • Gearbox for milling spindle
  • Upgrade 35 hp live spindle
  • Grinding function
  • Arbor for grinding
  • OD tool holder FST 265x32 (200X95)
  • OD tool holder FST 265x32 (BT6-0539)
  • OD tool holder FST 200x32 (BT6-0540)
  • OD tool holder FST 200x32 (200x95)
  • OD tool holder FST 215x32 (280x65)
  • Boring bar ID tool holder BT6-0542 FL220xA32
  • Boring bar ID tool holder BT6-0545 FL240x20
  • Boring bar ID tool holder FL220xA32
  • Boring bar ID tool holder FL280xA50
  • Boring bar ID tool holder L4 50x25
  • Boring bar ID tool holder FL240x20
  • Boring bar ID tool holder L4 15x25
  • Boring bar ID tool holder L5 15x25
  • OD tool holder FST 215x32 (260x65) (L) or (R)
  • OD tool holder FST 200x32 (250x95) (L) or (R)
