FORTWORTH - HB-110A

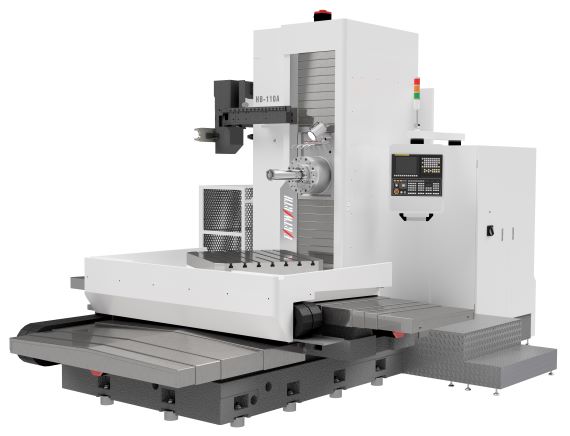

CNC Horizontal Boring & Milling Machine

Features

  • Machine manufactured of the highest quality cast iron.
  • Box type column, bed and saddle features outstanding stability in heavy duty cutting. All slide ways are hardened, precision ground and scraped for lasting precision.
  • The X,Y, Z and W-axes are equipped with ballscrew to ensure smooth table movement.
  • Headstock, table and saddle equipped with hydraulic clamping to ensure machining accuracy.
  • Spindle headstock balance is accurately taken and a counter weight permits the head to travel smoothly and to retain its accuracy and stability.

Fortworth HB-110A (2023).pdf
  Fortworth HB-110A CNC Horizontal Boring and Milling Machine

Specifications: FORTWORTH - HB-110A

Related Products:

TRAVELS METRIC IMPERIAL
X-Axis (longitudinal) 1800 mm 70.86
Y-Axis (vertical) 1350 mm 53.14"
Z-Axis (cross) 1020 mm 40.15"
W-Axis 550 mm 21.65"
Distance spindle nose to table centre (with W & Z-Axis) -145 - 1425 mm -5.70 - 56.10"
Distance spindle centre to table surface 0 - 1350 mm 0 - 53.14"
Guideway type X-Axis box way box way
Guideway type Y-Axis box way box way
Guideway type Z-Axis box way box way
TABLE
Table surface area 1200 x 1000 mm 47.24 x 39.37"
T-slot number (width x pitch) 7 (22 x 125 mm) 7 (0.86 x 4.92")
Max table load 4500 kg 9920 lb
Min indexing angle B-Axis 0.001° 0.001°
Indexing with locating pin – –
Rapid feed B-Axis 2 rpm 2 rpm
FEEDRATES
Rapid traverse X-Axis 15 M/min 590.54"/min
Rapid traverse Y-Axis 12 M/min 472.43"/min
Rapid traverse Z-Axis 15 M/min 590.54"/min
Rapid traverse W-Axis 6 M/min 236.22"/min
Cutting feedrate X, Y, Z-Axis 1 - 6000 mm/min 0.03 - 236"/min
Cutting feedrate W-Axis 1 - 4000 mm/min 0.03 - 157"/min
Ballscrew X, Y, Z-Axis (dia x pitch) ø50 mm x 10 mm ø1.96 x 0.39"
Ballscrew W-Axis (dia x pitch) ø40 mm x 10 mm ø1.57 x 0.39"
SPINDLE
Drive system gear head, 2-step gear head, 2-step
Spindle motor (30 min rating) 22kW (26kW) 30hp (35hp)
Taper CAT50 (*BT50) CAT50 (*BT50)
Speed range Low: 5 - 625 rpm 5 - 625 rpm
Speed range High: 626 - 2500 rpm 626 - 2500 rpm
Max spindle torque 135 kg/m 297.62 lb/m
AUTOMATIC TOOL CHANGER
Tool magazine capacity 60 tools 60 tools
Max tool weight 25 kg 55.11 lb
Max tool length 400 mm 15.74"
Max tool diameter ø125 mm ø4.92"
Max tool diameter (adjacent empty) ø250 mm ø9.84"
Tool selection sequence by shortest path sequence by shortest path
Tool to tool change time 15 sec 15 sec
DRIVE MOTORS
Feed drive X-Axis Servo 7kW Servo 9.38hp
Feed drive Y-Axis Servo 6kW Servo 8.04hp
Feed drive Z-Axis Servo 7kW Servo 9.38hp
Feed drive B-Axis Servo 7kW Servo 9.38hp
Feed drive W-Axis Servo 7kW Servo 9.38hp
GENERAL
Electrical approval CSA SPE-1000 CSA SPE-1000
Power required 45kVA 45kVA
Voltage required 600V or 220V 600V or 220V
Air pressure required 5-7 bar 80-110 psi
Coolant tank capacity 250 L 66.04 US gal
CONTROLLER
CNC Control FANUC FANUC
*Option
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.
