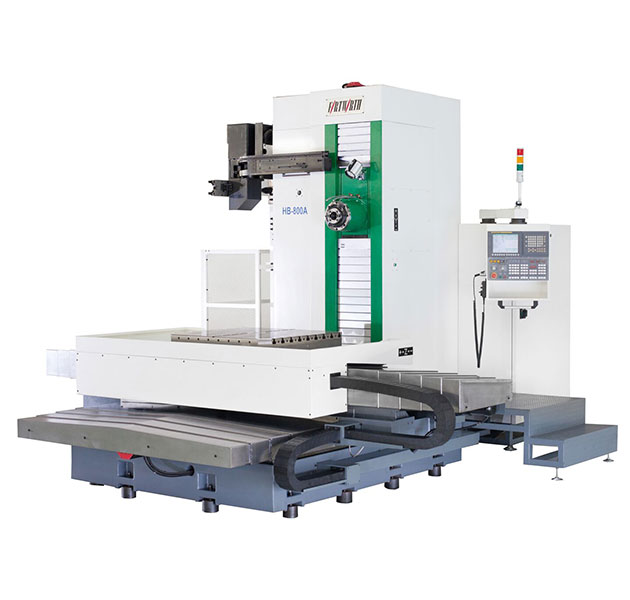

CNC Horizontal Boring & Milling Machine

Features

  • A high precision indexing work table driven by a Servo motor provides high accurate indexing.
  • The CNC boring and milling machine provides multiple face machining at one time. Boring, milling, drilling and tapping can be done just in one set-up.
  • The extra heavy, wide one-piece base has 4 slideways for rigidity.
  • Box type column features outstanding stability in heavy duty machining and accurate dynamic level at all time.
  • A 60 tool chain type ATC magazine provides safe and stable tool exchanges, enhancing machining flexibility and efficiency.

Fortworth HB800A (2016.11).pdf

Specifications: FORTWORTH - HB-800A

Related Products:

TRAVELS METRIC IMPERIAL
X-Axis (longitudinal) 2000 mm 78.74"
Y-Axis (vertical) 1200 mm 47.24"
Z-Axis (cross) 1200 mm 47.24"
Distance spindle nose to table 275 - 1475 mm 10.82 - 58.07"
Distance spindle centre to table 0 - 1200 mm 0 - 47.24"
Guideway type X-Axis box way box way
Guideway type Y-Axis box way box way
Guideway type Z-Axis box way box way
TABLE
Table surface area 1000 x 1000 mm 39.37 x 39.37"
T-slot number (width x pitch) 9 (22 x 100 mm) 9 (0.86 x 3.93")
Max table load 3000 kg 6613 lb
Min indexing angle B-Axis 1° (360°) 1° (360°)
Rapid feed B-Axis 4 rpm 4 rpm
Clamping force 5000 kg 11023 lb
FEEDRATES
Rapid traverse X-Axis 15 M/min 590.54"/min
Rapid traverse Y-Axis 12 M/min 472.43"/min
Rapid traverse Z-Axis 15 M/min 590.54"/min
Cutting feedrate 1-6000 mm/min 0.03-236"/min
SPINDLE
Drive system gear head, 2-step gear head, 2-step
Spindle motor (30 min rating) 15kW (18.5kW) 20hp (25hp)
Taper CAT50 CAT50
Speed range upgrade 30-6000 rpm upgrade 30-6000 rpm
AUTOMATIC TOOL CHANGER
Tool magazine capacity 60 tools 60 tools
Max tool weight 25 kg 55.11 lb
Max tool length 400 mm 15.74"
Max tool diameter ø125 mm ø4.92"
Max tool diameter (adjacent empty) ø250 mm ø9.84"
Tool selection shortest path shortest path
Tool to tool change time 15 sec 15 sec
DRIVE MOTORS
Feed drive X-Axis Servo 7kW Servo 9.38hp
Feed drive Y-Axis Servo 7kW Servo 9.38hp
Feed drive Z-Axis Servo 7kW Servo 9.38hp
Feed drive B-Axis Servo 4kW Servo 5.36hp
GENERAL
Electrical approval CSA SPE-1000 CSA SPE-1000
Power required 45kVA 45kVA
Voltage required 600V or 220V 600V or 220V
Air pressure required 5-7 bar 80-110 psi
Coolant tank capacity 350 L 92.46 US gal
CONTROLLER
CNC Control FANUC FANUC
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.
