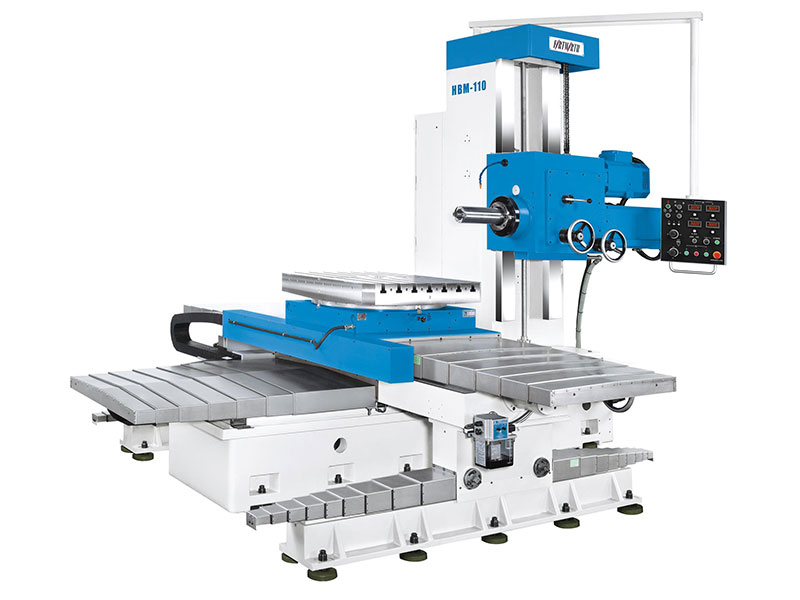

FORTWORTH - HBM-110

Rigid box-type column and base design features outstanding stability during heavy duty machining
All castings made of high quality cast iron and stress relieved
X, Y and Z-Axis features hardened and precision ground box way construction
Telescopic covers for cross and longitudinal traverse
X, Y and W-Axis equipped with ballscrews
Spindle headstock balance is accurately taken and the counter weight permits the head to travel smoothly and retain its accuracy and stability
Built-in index table with pneumatic clamping system
All functions integrated into operator's control panel to enhance operation efficiency
Working spindle quill is mounted on high precision tapered roller bearing for heavy duty machining
Equipped with air power draw bar for convenient tool clamping and unclamping

Fortworth Boring and Milling

Fortworth HBM-110 Demo

Fortworth HBM-110L Demo

TRAVEL	METRIC	IMPERIAL
X-Axis (table longitudinal)	1600 mm	62.99"
Y-Axis (spindle vertical)	1000 mm	39.37"
Z-Axis (table cross)	1250 mm	49.21"
W-Axis (spindle axial)	400 mm	15.74"
Guideway type X / Y / Z	box	box
Bedway type X / Y / Z	Turcite	Turcite
TABLE
Work surface	1000 x 800 mm	39.37 x 31.49"
Table indexing (360°)	1° /division	1° /division
T-slot number (width x pitch)	7 (22 x 100 mm)	7 (0.86 x 3.93")
Max table load	2500 kg	5512 lb
SPINDLE
Taper	ISA50	ISA50
Spindle drive motor	AC 15kW	AC 20hp
Spindle speed (2 ranges, variable)	20 - 1000 rpm	20 - 1000 rpm
Quill diameter	110mm	4.33"
Spindle center to table top	0 - 1000 mm	0 - 39.37"
Spindle end to table centre	372 - 1622 mm	14.64 - 63.85"
FEED SYSTEM
X, Y, Z-Axis feed	3 - 950 mm/min	0.11 - 37.4"/min
X, Y, Z-Axis rapid feed	2800 mm/min	110.23"/min
W-Axis feed rate	3 - 400 mm/min	0.11 - 15.74"/min
W-Axis rapid feed	1200 mm/min	47.24"/min
Change of feeds	infinitely variable	infinitely variable
X, Y, Z-Axis feed motors	2.9kW Servo	3.9hp Servo
W-Axis feed motor	1.3kW Servo	1.75hp Servo
GENERAL
Electrical rating	600V 30Amp 3Ph 60Hz	600V 30Amp 3Ph 60Hz
Electrical approval	CSA SPE-1000	CSA SPE-1000
Weight	12500 kg	27557 lb
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.
