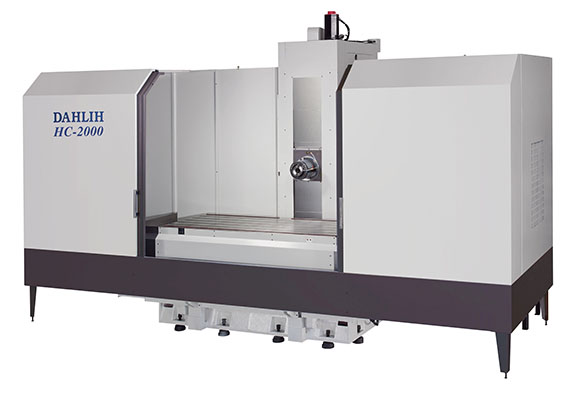

CNC Horizontal Machining Centre

Features

A new generation of high precision and high efficiency HMC suitable for mold and die machining.

  • The T-shape machine base and its ultra-rigid structure guarantee that the HC-2000 has exceptional consistency and accuracy.
  • The auxiliary vertical table provides convenient support for machining.
  • The machine's column and table are equipped with an air floating system to achieve higher positioning accuracy.
  • The powerful gear-drive spindle combined with its 8 contact surfaces on the head allows for extra heavy cutting.
  • The symmetrical structure of the column increases the machine’s rigidity and resistance to thermal deformation.
  • Choice of 60, 90 or 120-tool chain type tool magazine.

Dah Lih HC2000 (022-D2-00-027 07'2016).pdf

Specifications: DAH LIH - HC-2000

Related Products:

TRAVELS METRIC IMPERIAL
X-Axis (longitudinal) 2000 mm 78.74"
Y-Axis (vertical) 1000 mm (*1300 mm) 39.37" (*51.18")
Z-Axis (cross) 1000 mm 39.37"
Distance spindle nose to table centre 385 - 1385 mm 15.15 - 54.52"
Distance spindle centre to table surface 75 - 1075 mm 2.95 - 42.32"
Guideway type X-Axis box way box way
Guideway type Y-Axis box way box way
Guideway type Z-Axis box way box way
TABLE
Table surface area 2300 x 970 mm 90.55 x 38.19"
T-slot number (width) 5 (22 mm) 5 (0.86")
Max table load 7000 kg 15432 lb
FEEDRATES
Rapid traverse X-Axis 10 M/min 393.70"/min
Rapid traverse Y-Axis 10 M/min 393.70"/min
Rapid traverse Z-Axis 10 M/min 393.70"/min
Cutting feedrate 1 - 4000 mm/min 0.03 - 157"/min
Min input increment 0.001 mm 0.0001"
SPINDLE
Drive system gear head, 2-step gear head, 2-step
Spindle motor (30 min rating) 15kW (18.5kW) 20hp (25hp)
Taper CAT50 CAT50
Speed range 3500 (*6000 rpm) 3500 (*6000 rpm)
Drive range 2-step, infinitely variable 2-step, infinitely variable
Max spindle torque 585Nm 585Nm
AUTOMATIC TOOL CHANGER
Tool magazine capacity 60 tools 60 tools
Max tool weight 20 kg 44.09 lb
Max tool length 500 mm 19.68"
Max tool diameter ø110 mm ø4.33"
Max tool diameter (adjacent empty) ø245 mm ø9.64"
Tool selection bi-directional bi-directional
DRIVE MOTORS
Feed drive X-Axis Servo 3kW Servo 4hp
Feed drive Y-Axis Servo 3kW Servo 4hp
Feed drive Z-Axis Servo 3kW Servo 4hp
GENERAL
Electrical approval CSA SPE-1000 CSA SPE-1000
Power required 45kVA 45kVA
Voltage required 600V or 220V 600V or 220V
Air pressure required 5-7 bar 80-110 psi
Coolant tank capacity 340 L 90 US gal
CONTROLLER
CNC Control FANUC FANUC
