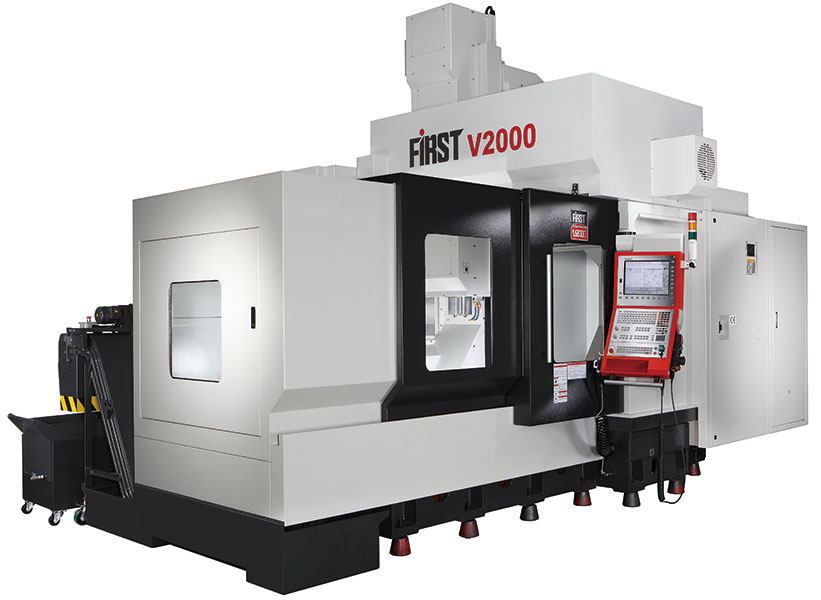

CNC Vertical Machining Centre Double Column High Speed

Features

Heavy duty cutting performance with consistent accuracy.

  • Double column design provides stable conditions during heavy duty cutting.
  • All major machine parts are Meehanite cast iron.
  • Enlarged saddle and rigid head structure for stability.
  • 3-axes assembled with high precision linear roller guideways. For the Y-axis movement a triple guideway system is used with two roller type linear guideways on the face of bridge and the third is located on the top to offer excellent holding of headstock.
  • All 3-axes equipped with preloaded ballscrews directly driven with servo motors for excellent feeding accuracy.
  • Efficient and stable tool changes.
  • User friendly ergonomic design.
  • Fully enclosed splash guard with wide door opening for easy access.
  • Equipped standard with Heidenhain 3-axis glass scales (closed looped).

First V2000 (A01 09020201) rpg10.pdf

Specifications: FIRST - V2000

Related Products:

TRAVELS METRIC IMPERIAL
Distance between two columns 1200 mm 47.24"
X-Axis travel 2050 mm 80.70"
Y-Axis travel 1150 mm 45.27"
Z-Axis travel 700 mm 27.56"
Distance from spindle nose to table top 200 - 900 mm 7.87 - 35.43"
Guideway type X-Axis linear roller linear roller
Guideway type Y-Axis linear roller linear roller
Guideway type Z-Axis linear roller linear roller
TABLE
Table surface area 2200 x 1000 mm 86.61 x 39.37"
T-slot number (width x pitch) 6 (22 x 160 mm) 6 (0.86 x 6.29")
Max table load 3000 kg 6613 lb
FEEDRATE
Rapid traverse X-Axis 20 M/min 787.40"/min
Rapid traverse Y-Axis 30 M/min 1181.10"/min
Rapid traverse Z-Axis 16 M/min 629.92"/min
Cutting feedrate 1-10000 mm/min 0.04 - 394"/min
Min input increment 0.001 mm 0.0001"
SPINDLE
Drive system direct drive with low speed gear box direct drive with low speed gear box
Spindle motor (30 min rating) Alpha T22i 22kW (26kW) Alpha T22i 30hp (35hp)
Taper BCV-50 Big Plus BCV-50 Big Plus
Speed range 10000 rpm 10000 rpm
Drive range 10-10000 rpm 10-10000 rpm
Max spindle torque
TOOL CHANGER - Arm Type
Tool magazine capacity upgrade 40 tools (*60/90/120) upgrade 40 tools (*60/90/120)
Max tool weight 15 kg 33.06 lb
Max tool length 400 mm 15.74"
Max tool diameter ø127 mm ø5.00"
Max tool diameter (adjacent empty) ø228 mm ø8.97"
Tool selection random (90/120 by address code) random (90/120 by address code)
Tool to tool change time 4.4 sec 4.4 sec
ACCURACY
Positioning accuracy 0.010 mm 0.0004"
Repeatability accuracy 0.005 mm 0.0002"
MOTORS
Feed drive X-Axis 4kW 5.4hp
Feed drive Y-Axis 4kW 5.4hp
Feed drive Z-Axis 6kW 8hp
GENERAL
Electrical approval CSA SPE-1000 CSA SPE-1000
Power required 35kVA 35kVA
Voltage required 600V or 220V 600V or 220V
Air pressure required 5-7 bar 75-110 psi
Coolant tank capacity 600 L 158 US gal
CONTROLLER
CNC Control FANUC FANUC
*Option
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.

Standard Accessories

  • 10000rpm direct drive (Alpha T22i) with low speed gear box
  • Enclosed splash guard
  • Air gun
  • Coolant gun
  • Coolant system
  • Coolant tank and chip collector
  • Spindle oil chiller
  • Automatic lubrication system
  • Telescopic covers
  • Chip auger-spiral (screw) type front and back of table
  • Chip conveyor-flat type L side rear discharge + bin
  • Removable MPG manual pulse generator
  • Linear scale for X, Y, Z axes
  • Call light (3-color)
  • LED Work lights
  • Levelling bolts, nuts and pads
  • Tool kit

Included Accessories

  • 40-tool arm type ATC
  • Set of pull studs
  • Coolant through spindle system (50 bar)
  • Air through spindle
  • External air blast
  • Oil skimmer system
  • 4th + 5th axis connector ready
  • Automatic power off
  • Door interlock safety switch
  • Transformer

Optional Accessories

  • 60-tool arm type ATC
  • 90-tool arm type ATC
  • 120-tool arm type ATC
  • 15000 rpm direct drive (Alpha T15i)
  • Paper filter system
  • Oil mist collection system
  • Vacuum dust collector
  • 4th axis connector ready
  • 4th axis rotary table
  • 4th + 5th axis rotary table
  • Automatic tool length measuring device
  • Automatic workpiece measuring device
  • Electrical cabinet heat exchanger
  • Rotary window for clear viewing
