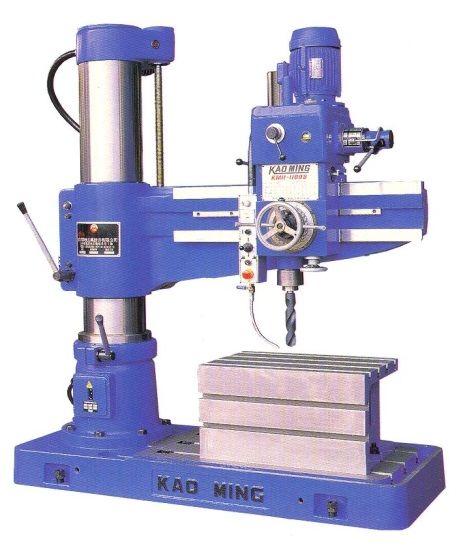

| TRAVELS |
METRIC |
IMPERIAL |
| Spindle head longitudinal travel |
768 mm |
30.25" |
| Vertical arm travel |
700 mm |
27.55" |
| Spindle center to column center |
505 - 1250 mm |
19.88 - 49.21'' |
| Spindle center to column face |
355 - 1100 mm |
13.97 - 43.30" |
| Spindle end to work base surface |
345 - 1265 mm |
13.58 - 49.80" |
| Work base surface area |
1260 x 760 mm |
49.60 x 29.92" |
| Column diameter |
ø300 mm |
ø11.81" |
| Column height |
2108 mm |
82.99" |
| Max height spindle head to floor |
2503 mm |
98.54" |
| Box table L x W x H |
500 x 750 x 400 mm |
19.68 x 29.52 x 15.74" |
| SPINDLE |
|
|
| Taper |
MT4 |
MT4 |
| Speed range |
49 - 1524 rpm |
49 - 1524 rpm |
| Number of speeds |
9 steps |
9 steps |
| Feed range |
0.1 / 0.22 / 0.35 mm/rev |
0.004 / 0.0088 / 0.014"/rev |
| Number of feeds |
3-step |
3-step |
| Spindle travel |
220 mm |
8.66" |
| Quill diameter |
80 mm |
3.14" |
| WORKING CAPACITY |
|
|
| Drilling (cast iron / steel) |
55 / 45 mm |
2.16" / 1.77" |
| Boring (cast iron / steel) |
150 / 100 mm |
5.90" / 3.93" |
| Tapping (cast iron / steel) |
38 / 25 mm |
1.49" / 0.98" |
| MOTORS |
|
|
| Main spindle motor |
2.2kW |
3hp |
| Arm elevating motor |
1.5kW |
2hp |
| Clamping device motor |
- |
- |
| GENERAL |
|
|
| Electrical rating |
600V 7Amp 3Ph 60Hz |
600V 7Amp 3Ph 60Hz |
| Electrical approval |
CSA SPE-1000 |
CSA SPE-1000 |
| PHSR exemption letter |
valid in Ontario |
valid in Ontario |
| Net weight |
2375 kg |
5235 lb |
| The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice. |
