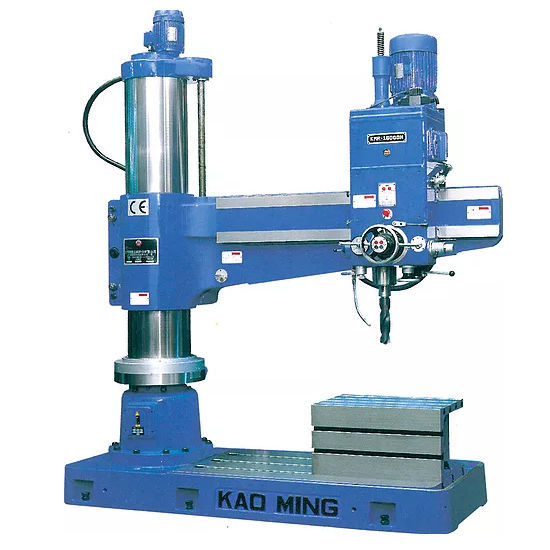

| TRAVELS |
METRIC |
IMPERIAL |
| Spindle head longitudinal travel |
1200 mm |
47.24" |
| Vertical arm travel |
900 mm |
35.43" |
| Spindle center to column center |
565 -1795 mm |
22.24 - 70.66" |
| Spindle center to column face |
370 - 1600 mm |
14.56 - 62.99" |
| Spindle end to work base surface |
450 - 1650 mm |
17.71 - 64.96" |
| Work base surface area |
1643 x 930 mm |
64.68 x 36.61" |
| Column diameter |
ø390 mm |
ø15.35" |
| Column height |
3050 mm |
120.07" |
| Max height spindle head to floor |
3450 mm |
135.82" |
| Box table L x W x H |
500 x 750 x 400 mm |
19.68 x 29.52 x 15.74" |
| SPINDLE |
|
|
| Taper |
MT5 |
MT5 |
| Speed range |
30 - 1580 rpm |
30 - 1580 rpm |
| Number of speeds |
12-step |
12-step |
| Feed range |
0.06 - 1.12 mm/rev |
0.0025 - 0.045"/rev |
| Number of feeds |
12-step |
12-step |
| Spindle travel |
300 mm |
11.81" |
| Quill diameter |
105 mm |
4.13" |
| WORKING CAPACITY |
|
|
| Drilling (cast iron / steel) |
66 / 56 mm |
2.59" / 2.20" |
| Boring (cast iron / steel) |
186 / 126 mm |
7.32" / 4.96" |
| Tapping (cast iron / steel) |
60 / 50 mm |
2.36" / 1.96" |
| MOTORS |
|
|
| Main spindle motor |
5.5kW |
7.5hp |
| Arm elevating motor |
1.5 kW |
2hp |
| Clamping device motor |
0.75 kW |
1hp |
| GENERAL |
|
|
| Electrical rating |
600V 10Amp 3Ph 60Hz |
600V 10Amp 3Ph 60Hz |
| Electrical approval |
CSA SPE-1000 |
CSA SPE-1000 |
| PHSR exemption letter |
valid in Ontario |
valid in Ontario |
| Net weight |
4790 kg |
10560 lb |
| The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice. |
