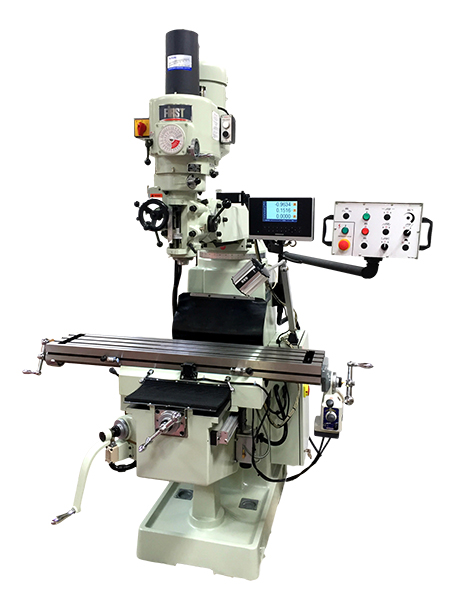

FIRST - LC-1 1/2VS

Vertical Variable Speed Milling Machine

Features

  • A patented head knuckle design is used for head tilting.
  • Gibbed and double-locked ram design ensures rigidity and limits clearance between ram and adapter.
  • The quill and housing are selectively fitted. lt offers extreme high spindle accuracy.
  • One piece quill pinion shaft.
  • Extra lubrication design between quill and housing
  • R8 spindle is hardened and precision ground.
  • Meehanite casting with annealing and stress relieving treatment.
  • Chromed bedways
  • Precision leadscrews are driven by Phosphor Bronze double nuts for even backlash adjustment.
  • Double knee locks clamp the knee firmly and eliminates any lateral rocking motion.
  • The simple and reliable one-shot lubrication is used to lubricate all slideways and leadscrews.

First LC-1 1-2VS (20240916).pdf
Overview First Milling Machines 20240912 AC.pdf

Specifications: FIRST - LC-1 1/2VS

Related Products:

TRAVELS METRIC IMPERIAL
X-Axis 762 mm (*966 mm) 30" (*38")
Y-Axis 305 mm 12"
Z-Axis 406 mm 16"
Guideway type X / Y / Z dove-tail dove-tail
Bedway type X / Y chromed chromed
TABLE
Work surface 1067 x 230 mm (*1270 x 230mm) 42 x 9" (*50 x 9")
T-slot number (width x pitch) 3 (15.87 x 63.5 mm) 3 (0.62 x 2.5")
Max table load 300 kg 661 lb
VERTICAL SPINDLE
Taper R8 R8
Spindle drive motor 3hp 3hp
Spindle speed (variable) 60 - 4500 rpm 60 - 4500 rpm
Quill travel 127 mm 5"
Quill diameter 85.7 mm 3.37"
Quill feeds 0.04, 0.08, 0.16 mm/rev 0.0015, 0.003, 0.006"/rev
Head swivel R & L 90° 90°
Head swivel F & B +45° ~ -38° +45° ~ -38°
Overarm travel 305 mm 12"
Overarm swivel 360° 360°
Spindle nose to table 51 - 457 mm 2 - 18"
Spindle nose to column surface 171 - 476 mm 6.75 - 18.75"
GENERAL
Electrical rating 600V 2Amp 3Ph 60Hz 600V 2Amp 3Ph 60Hz
Electrical approval CSA SPE-1000 CSA SPE-1000
PHSR exemption letter valid in Ontario valid in Ontario
Weight 1010 kg 2227 lb
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.

Standard Accessories

  • Rubber chip covers F & R
  • One shot lubrication system

Included Accessories

  • 2-Axis digital readout installed
  • R8 Collets (8pc set) 1/8, 3/16, 1/4, 5/16, 3/8, 1/2, 5/8 & 3/4"

Optional Accessories

  • 3rd-Axis digital readout installed
  • Align longitudinal table feed installed
  • Align air power drawbar installed
  • LED Machine lamp 110V
  • Pendant control arm including electrical cabinet with low voltage control system
  • 50 x 9" Work surface (X-Axis travel 38")
