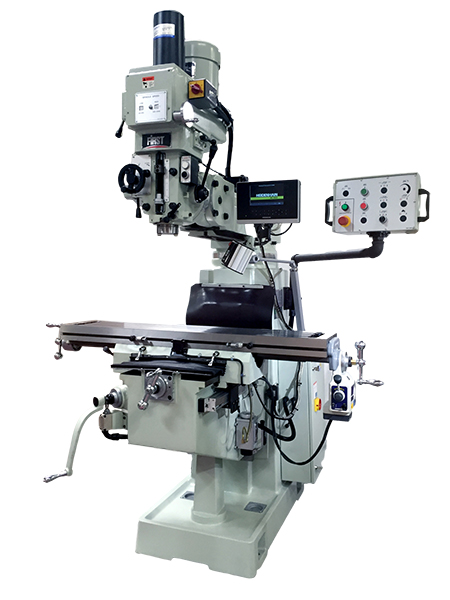

FIRST - LC-185VSX-B

Variable speed head with 5HP spindle motor
For safety, all control switches are wired low voltage (24V). For operator's convenience control panel swivels on a swing arm.
Extra lubrication design between quill and housing
One piece quill pinion and shaft
Quill and housing are selectively fitted
The Spindle is made from one piece of Ni-Cr alloy steel and supported by three precision angular contact and one ball bearing to ensure rigidity. The inner taper surface is induction hardened and precision ground to ensure durability. The spindle inner taper runout remains within 0.002mm.
Meehanite casting with annealing and stress relieving treatment
Table slideway and top surface are hardened and ground
650mm extra wide saddle
Rigid square ways on Y axis hardened and ground with Turcite-B coating on both sides of saddle
Box ways on Z axis for stability
Rapid feed on Z axis for convenience

TRAVELS	METRIC	IMPERIAL
X-Axis	890 mm	35"
Y-Axis	425 mm	16.75"
Z-Axis	390 mm	15.3"
Guideway type X / Y / Z	dovetail / square / box	dovetail / square / box
Bedway type X / Y / Z	hardened & ground Turcite-B	hardened & ground Turcite-B
TABLE
Work surface	1372 x 254 mm	54 x 10"
T-slot number (width x pitch)	3 (15.87 x 63.5 mm)	3 (0.62 x 2.5")
Max table load	400 kg	882 lb
VERTICAL SPINDLE
Taper	ISA 40	ISA 40
Spindle drive motor	5hp	5hp
Spindle speed (variable)	60 - 4500 rpm	60 - 4500 rpm
Quill travel	127 mm	5"
Quill diameter	90 mm	3.54"
Quill feeds	0.04, 0.08, 0.16 mm/rev	0.0015, 0.003, 0.006"/rev
Head swivel R & L	90°	90°
Head swivel F & B	45°	45°
Overarm travel	470 mm	18.5"
Overarm swivel	360°	360°
Spindle nose to table	165 - 570 mm	6.5 - 22.4"
Spindle nose to column surface	330 - 800 mm	13 - 31.5"
GENERAL
Electrical rating	600V 5.7Amp 3Ph 60Hz	600V 5.7Amp 3Ph 60Hz
Electrical approval	CSA SPE-1000	CSA SPE-1000
PHSR exemption letter	valid in Ontario	valid in Ontario
Weight	1250 kg	2755 lb
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.
