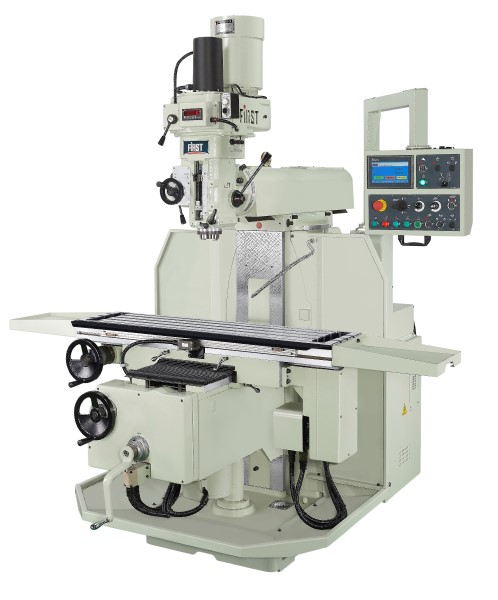

FIRST - LC-20VHS

Features

• The table is driven by steel gears with 12 speed changes and rapid feed for quick positioning of the work piece.
• For safety, all control switches are wired low voltage (24V). For operator's convenience control panel swivels on a swing arm.
• The Spindle is made from one piece of Ni-Cr alloy steel and supported by three precision angular contact and one ball bearing to ensure rigidity. The inner taper surface is induction hardened and precision ground to ensure durability. The spindle inner taper runout remains within 0.002mm.
• All the gears that drive the horizontal spindle system are made of alloy steel, precision ground and hardened for heavy cutting and smooth quiet operation. The automatic lubrication system keeps the gears continuously lubricated. The 5HP drive motor with 6 speed changes offers high torque cutting in a wide range of speeds.
• The ram adapter is designed with 8 T-bolts clamping system that allows the large vertical head to be tilted at all angles including front and back. This structure greatly increases the versatility of the machine.
• To ensure smooth operation, eliminate noise and vibration in the vertical head under high speed, the inside shaft of the vari-disc is treated with HD polymer using a patented process.
• The knee and saddle constructed with a box way design to ensure stability. Cross ways are hardened and ground for long lasting wear. Bed ways are treated with a Turcite-B coating which has excellent oil retention properties and a high resistance to wear.
• To maintain the tension on both the longitudinal and cross leadscrews, the nuts and leadscrew are adjustable for periodic backlash adjustments.

Specifications: FIRST - LC-20VHS

Related Products: LC-185VSX-B LC-20VSG LC-205VSD LC-205VHD MetricImperial

TRAVELS	METRIC	IMPERIAL
X-Axis	800 mm (*920 mm)	31.5" (*36.2")
Y-Axis	430 mm	16.9"
Z-Axis	435 mm	17.12"
Guideway type X / Y / Z	dovetail / box / box	dovetail / box / box
Bedway type X / Y / Z	hardened & ground Turcite-B	hardened & ground Turcite-B
TABLE
Work surface	1300 x 260 mm (*1420 x 260 mm)	51.2 x 10" (*55.9 x 10")
T-slot number (width x pitch)	3 (15.87 x 63.5 mm)	3 (0.62 x 2.5")
Max table load	500 kg	1102 lb
VERTICAL SPINDLE
Taper	ISA40	ISA40
Spindle drive motor	5hp	5hp
Spindle speed (variable)	60 - 4500 rpm	60 - 4500 rpm
Quill travel	127 mm	5"
Quill diameter	90 mm	3.54"
Quill feeds	0.04, 0.08, 0.16 mm/rev	0.0015, 0.003, 0.006"/rev
Head swivel R & L	90°	90°
Head swivel F & B	45°	45°
Overarm travel	470 mm	18.50"
Overarm swivel	360°	360°
Spindle nose to table	115 - 550 mm	4.5 - 21.7"
Spindle nose to column surface	355 - 825 mm	14 - 32.5"
HORIZONTAL SPINDLE
Taper	ISA 40	ISA 40
Horizontal spindle drive motor	5hp	5hp
Spindle speed (6-step)	55 - 1180 rpm	55 - 1180 rpm
Spindle center to table surface	-25 ~ 410 mm	-1 ~ 16.1"
Spindle center to overarm surface	146 mm	5.7''
FEED SYSTEM
Longitudinal feed (12-step)	22 - 690 mm/min	0.8 - 27.2"/min
Longitudinal rapid feed	2100 mm/min	82.7"/min
Vertical rapid feed	800 mm/min	31.5"/min
Longitudinal feed motor	1 / 0.5hp 4 / 8P	1 / 0.5hp 4 / 8P
Cross feed motor	-	-
Vertical feed motor	1.5hp 6P	1.5hp 6P
GENERAL
Electrical rating	600V 9.6Amp 3Ph 60Hz	600V 9.6Amp 3Ph 60Hz
Electrical approval	CSA SPE-1000	CSA SPE-1000
PHSR exemption letter	valid in Ontario	valid in Ontario
Weight	2010 kg	4430 lb
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.

Standard Accessories

• Rubber chip covers F & R
• One shot lubrication system
• Horizontal milling arbor & support
• Coolant system & splash tray
• Levelling bolts, nuts and pads

Included Accessories

• 2-Axis digital readout installed

Optional Accessories

• 3rd-Axis digital readout installed
• Align air power drawbar installed
• LED Machine lamp 110V
• 56 x 10" Work surface (X-Axis travel 36.2")
