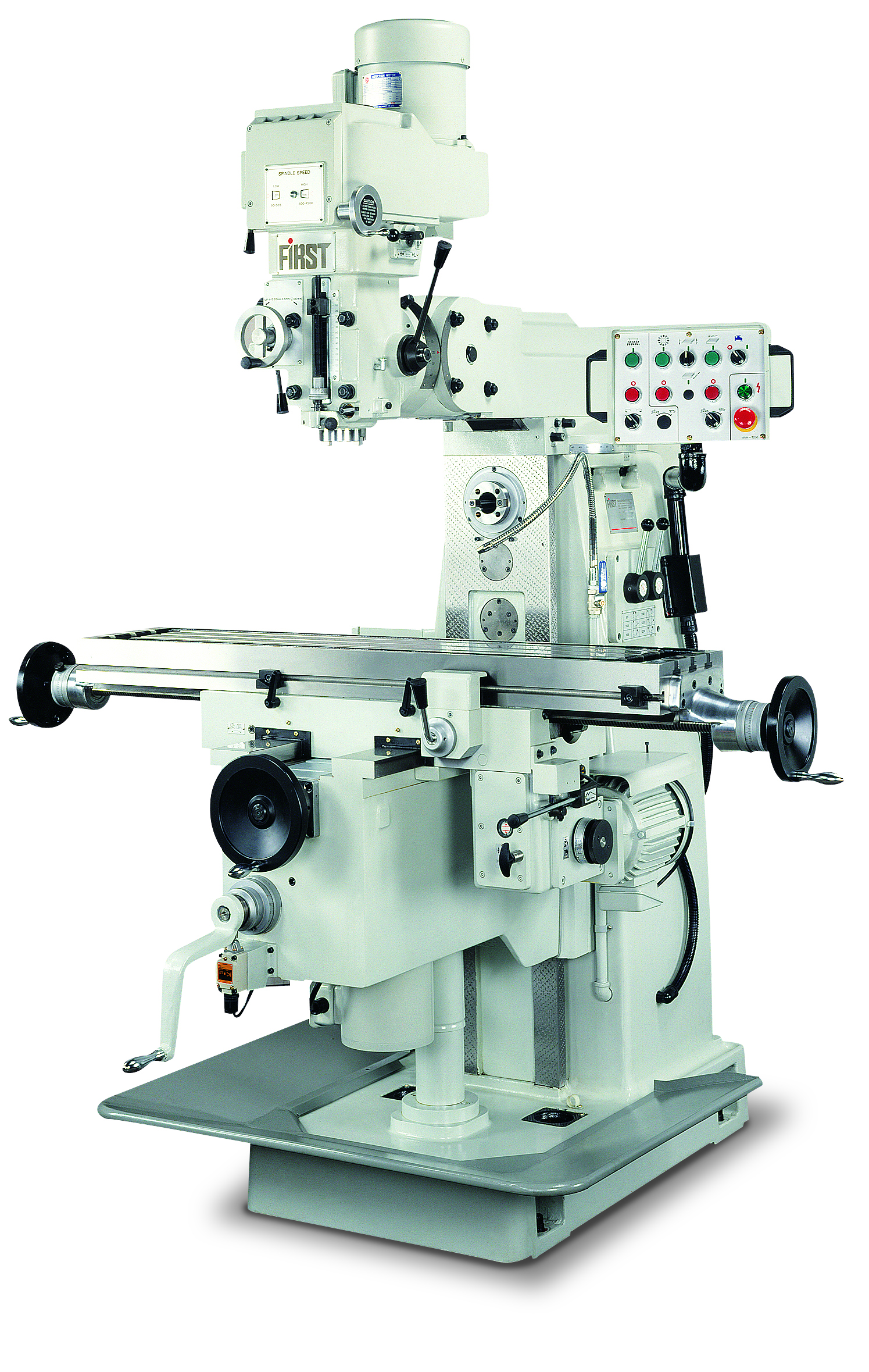

FIRST - LC-20VSG

Heavy Duty Vertical Variable Speed Milling Machine

Features

  • The table is driven by steel gears with 12 speed changes and rapid feed for quick positioning of the work piece.
  • For safety, all control switches are wired low voltage (24V). For operator's convenience control panel swivels on a swing arm.
  • The Spindle is made from one piece of Ni-Cr alloy steel and supported by three precision angular contact and one ball bearing to ensure rigidity. The inner taper surface is induction hardened and precision ground to ensure durability. The spindle inner taper runout remains within 0.002mm.
  • The ram adapter is designed with 8 T-bolts clamping system that allows the large vertical head to be tilted at all angles including front and back. This structure greatly increases the versatility of the machine.
  • To ensure smooth operation, eliminate noise and vibration in the vertical head under high speed, the inside shaft of the vari-disc is treated with HD polymer using a patented process.
  • The knee and saddle constructed with a box way design to ensure stability. Cross ways are hardened and ground for long lasting wear. Bed ways are treated with a Turcite-B coating which has excellent oil retention properties and a high resistance to wear.
  • To maintain the tension on both the longitudinal and cross leadscrews, the nuts and leadscrew are adjustable for periodic backlash adjustments.

First LC-20 Series (20240912).pdf
Overview First Milling Machines 20240912 AC.pdf

Specifications: FIRST - LC-20VSG

Related Products:

TRAVELS METRIC IMPERIAL
X-Axis 800 mm (*920 mm) 31.5" (*36.2")
Y-Axis 430 mm 16.9"
Z-Axis 460 mm 18"
Guideway type X / Y / Z dovetail / box / box dovetail / box / box
Bedway type X / Y / Z hardened & ground Turcite-B hardened & ground Turcite-B
TABLE
Work surface 1300 x 260 mm (*1420 x 260 mm) 51.2 x 10" (*55.9 x 10")
T-slot number (width x pitch) 3 (15.87 x 63.5 mm) 3 (0.62 x 2.5")
Max table load 500 kg 1102 lb
VERTICAL SPINDLE
Taper ISA40 ISA40
Spindle drive motor 5hp 5hp
Spindle speed (variable) 60 - 4500 rpm 60 - 4500 rpm
Quill travel 127 mm 5"
Quill diameter 90 mm 3.54"
Quill feeds 0.04, 0.08, 0.16 mm/rev 0.0015, 0.003, 0.006"/rev
Head swivel R & L 90° 90°
Head swivel F & B 45° 45°
Overarm travel 470 mm 18.50"
Overarm swivel 360° 360°
Spindle nose to table 80 - 540 mm 3.1 - 21.3"
Spindle nose to column surface 355 - 825 mm 14 - 32.5"
HORIZONTAL SPINDLE
Taper - -
Horizontal spindle drive motor - -
Spindle speed (6-step) - -
Spindle center to table surface - -
Spindle center to overarm surface - -
FEED SYSTEM
Longitudinal feed (12-step) 22 - 690 mm/min 0.8 - 27.2"/min
Longitudinal rapid feed 2100 mm/min 82.7"/min
Vertical rapid feed 800 mm/min 31.5"/min
Longitudinal feed motor 1 / 0.5hp 4 / 8P 1 / 0.5hp 4 / 8P
Cross feed motor - -
Vertical feed motor 1.5hp 6P 1.5hp 6P
GENERAL
Electrical rating 600V 9.6Amp 3Ph 60Hz 600V 9.6Amp 3Ph 60Hz
Electrical approval CSA SPE-1000 CSA SPE-1000
PHSR exemption letter valid in Ontario valid in Ontario
Weight 1800 kg 3970 lb
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.

Standard Accessories

  • Rubber chip covers F & R
  • One shot lubrication system
  • Coolant system & splash tray
  • Levelling bolts, nuts and pads

Included Accessories

  • 2-Axis digital readout installed

Optional Accessories

  • 3rd-Axis digital readout installed
  • Align air power drawbar installed
  • LED Machine lamp 110V
  • 56 x 10" Work surface (X-Axis travel 36.2")
