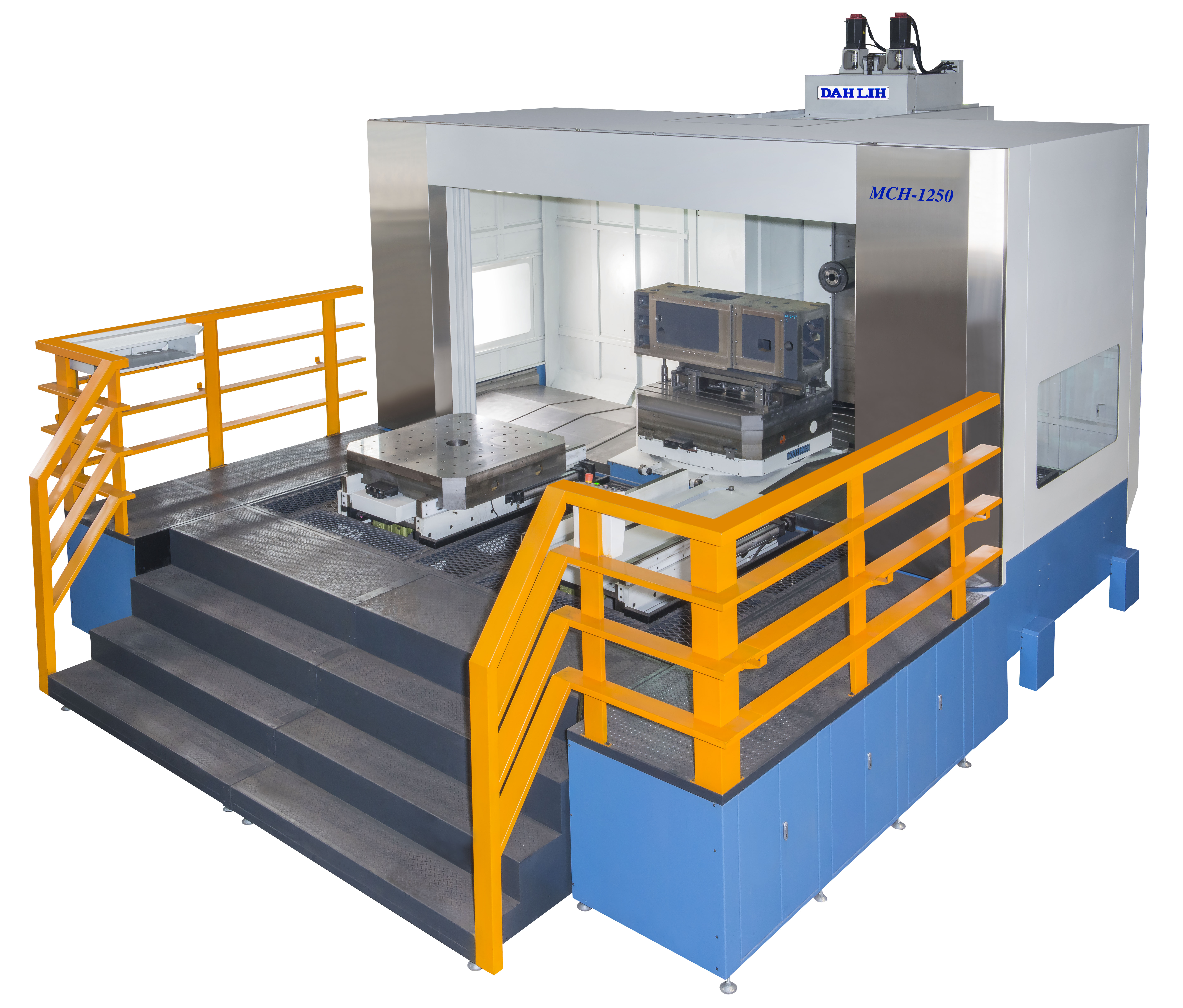

CNC Horizontal Machining Centre

Features

The perfect combination of high speed and high precision machining with extra large machining capacity.

  • The traveling column with its double wall construction, combined with a large span of box ways enhance its unique stability during cutting.
  • Box ways on three axes are excellent for heavy cutting with maximum stability.
  • X, Y, Z-axes are all designed with twin drive systems.
  • Floating type rotary table.
  • Semi-floating type feed on column and saddle feeds for smooth movement.
  • Choice of 60, 90, or 120-tool chain type tool magazine.

Dah Lih MCH-1250 (022-D2-00-024 02'2015).pdf

Specifications: DAH LIH - MCH-1250

Related Products:

TRAVELS METRIC IMPERIAL
X-Axis (longitudinal) 1800 mm 70.86"
Y-Axis (vertical) 1500 mm 59.05"
Z-Axis (cross) 1300 mm 51.18"
Distance spindle nose to table centre 350 - 1650 mm 13.7 - 64.96"
Distance spindle centre to table surface 75 - 1575 mm 2.95 - 62.00"
Guideway type X-Axis box way box way
Guideway type Y-Axis box way box way
Guideway type Z-Axis box way box way
APC AUTOMATIC PALLET CHANGER - Shuttle Type
Pallet size 1250 x 1250 mm 49.21 x 49.21"
Min indexing angle B-Axis 5° (*.001°) 5° (*.001°)
Max table load 4000 kg 8818 lb
FEEDRATES
Rapid traverse X-Axis 15 M/min 590.54"/min
Rapid traverse Y-Axis 15 M/min 590.54"/min
Rapid traverse Z-Axis 15 M/min 590.54"/min
Cutting feedrate 1-10000 mm/min 0.03-394"/min
Min input increment 0.001 mm 0.0001"
SPINDLE
Drive system gear drive gear drive
Spindle motor (30 min rating) upgrade 18.5kW (22kW) upgrade 25hp (30hp)
Taper NT50 NT50
Speed range 3500 rpm 3500 rpm
Drive range 3-step 3-step
Max Spindle torque 132.7 kgf-m 132.7 kgf-m
ATC AUTOMATIC TOOL CHANGER - Arm Type
Tool magazine capacity 60 tools (*90/120) 60 tools (*90/120)
Max tool weight 20 kg 44.09 lb
Max tool length 500 mm 19.68"
Max tool diameter ø110 mm ø4.33"
Max tool diameter (adjacent empty) ø245 mm ø9.64"
Tool selection random random
DRIVE MOTORS
Feed drive X-Axis Servo 3kW + 3kW Servo 4hp + 4hp
Feed drive Y-Axis Servo 3kW + 3kW Servo 4hp + 4hp
Feed drive Z-Axis Servo 3kW + 3kW Servo 4hp + 4hp
GENERAL
Electrical approval CSA SPE-1000 CSA SPE-1000
Power required 60kVA 60kVA
Voltage required 600V or 220V 600V or 220V
Air pressure required 5-7 bar 80-110 psi
Coolant tank capacity 840 L 221.90 US gal
CONTROLLER
CNC Control FANUC FANUC
*Option
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.

Standard Accessories

  • 60-tool hydraulic type ATC
  • Automatic pallet changer with manual rotation
  • Automatic lubrication equipment
  • Spindle oil chiller
  • Chip auger-spiral (screw) type front + back of table
  • Chip conveyor-flat type front L side discharge + wagon
  • Removable MPG manual pulse generator
  • Automatic power off
  • Linear scale X, Y & Z axes
  • Electric cabinet heat exchanger
  • Call light (3-color)
  • LED Work light
  • Door inter-lock safety switch
  • Levelling bolts, nuts and pads
  • Tool kit
  • Transformer

Included Accessories

  • Set of pull studs
  • Coolant and air gun
  • Coolant through spindle (20 bar)
  • Shower coolant
  • Oil skimmer system

Optional Accessories

  • 90-tool hydraulic type ATC
  • 120-tool hydraulic type ATC
  • Coolant through spindle (50 bar)
  • Oil mist collection system
  • Automatic tool measuring device
  • Automatic workpiece measuring device
  • Continuous rotation B-Axis, 0.001°
