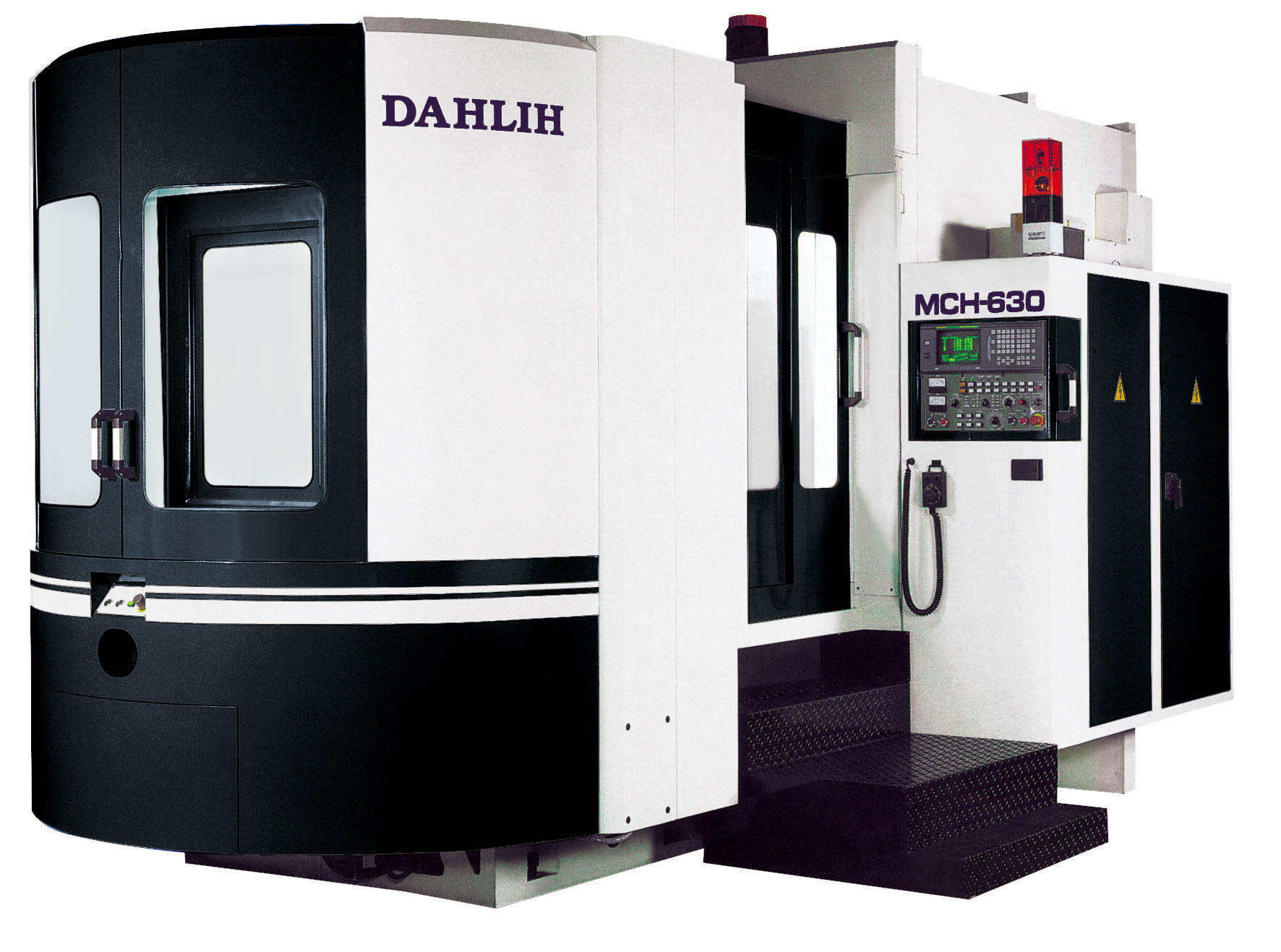

CNC Horizontal Machining Centre - Traveling Column

Features

Add speed and efficiency to your machining operations, with its outstanding features, the MCH-630 will help to increase productivity.

  • A unique traveling column structure increases versatility.
  • A swing type APC Automatic Pallet Changer permits fast workpiece changes.
  • Extra wide box ways on three axes upgrades machining stability.
  • A t-shaped base features outstanding structural stability.
  • Gear-drive spindle makes the machine ideal for heavy cutting.
  • Choice of 60 or 90-tool chain type tool magazine.

Dah Lih MCH-630 (022-D2-00-013 07'2013).pdf

Specifications: DAH LIH - MCH-630

Related Products:

TRAVELS METRIC IMPERIAL
X-Axis (longitudinal) 1000 mm 39.37"
Y-Axis (vertical) 800 mm 31.49"
Z-Axis (cross) 800 mm 31.49"
Distance spindle nose to table centre 140 - 940 mm 5.51 - 37"
Distance spindle centre to table surface 100 - 900 mm 3.93 - 35.43"
Guideway type X-Axis box way box way
Guideway type Y-Axis box way box way
Guideway type Z-Axis box way box way
APC AUTOMATIC PALLET CHANGER - Swing Type
Pallet size 630 x 630 mm 24.80 x 24.80"
Min indexing angle B-Axis 1° (*.001°) 1° (*.001°)
Max table load 1000 kg 1000 kg
FEEDRATES
Rapid traverse X-Axis 24 M/min 944.88"/min
Rapid traverse Y-Axis 24 M/min 944.88"/min
Rapid traverse Z-Axis 24 M/min 944.88"/min
Cutting feedrate 1-8000 mm/min 0.03-315"/min
Min input increment 0.001 mm 0.0001"
SPINDLE
Drive system gear drive gear drive
Spindle motor (30 min rating) 15kW (18.5kW) 20hp (25hp)
Taper CAT50 CAT50
Speed range 60 - 6000 rpm 60 - 6000 rpm
Drive range two gears variable two gears variable
Max spindle torque 585Nm 585Nm
ATC AUTOMATIC TOOL CHANGER - Arm Type
Tool magazine capacity 60 tools 60 tools
Max tool weight 20 kg 44.09 lb
Max tool length 400 mm 15.74"
Max tool diameter ø110 mm ø4.33"
Max tool diameter (adjacent empty)
Tool selection random random
DRIVE MOTORS
Feed drive X-Axis 4kW 5.3hp
Feed drive Y-Axis 7kW 9.3hp
Feed drive Z-Axis 4kW 5.3hp
GENERAL
Electrical approval CSA SPE-1000 CSA SPE-1000
Power required 55kVA 55kVA
Voltage required 600V or 220V 600V or 220V
Air pressure required 5-7 bar 80-110 psi
Coolant tank capacity
CONTROLLER
CNC Control FANUC FANUC
*Option
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.

Standard Accessories

  • 60-tool hydraulic type ATC
  • Automatic pallet changer with manual rotation
  • Automatic lubrication equipment
  • Enclosed splash guard
  • Coolant equipment
  • Spindle oil chiller
  • Chip auger-spiral (screw) type both sides of table
  • Removable MPG manual pulse generator
  • Spindle load meter
  • Spindle speed meter
  • Automatic power off
  • Linear scale X, Y & Z axes
  • Electric cabinet heat exchanger
  • Call light (3-color)
  • LED Work light
  • Door inter-lock safety switch
  • Levelling bolts, nuts and pads
  • Tool kit
  • Transformer

Included Accessories

  • Set of pull studs
  • Coolant and air gun
  • Coolant through spindle (20 bar) for gear drive spindle
  • Shower coolant
  • Oil skimmer system
  • Chip conveyor-flat type front L side discharge
  • Chip wagon

Optional Accessories

  • 90-tool hydraulic type ATC
  • 120-tool hydraulic type ATC
  • Larger spindle motor 30hp or 35hp
  • Coolant through spindle with filter (50 bar pressure)
  • Automatic tool measuring device
  • Automatic workpiece measuring device
  • Tool breakage detection device
  • Continuous rotation B-Axis, 0.001°
  • Linear scale for continuous B-Axis
