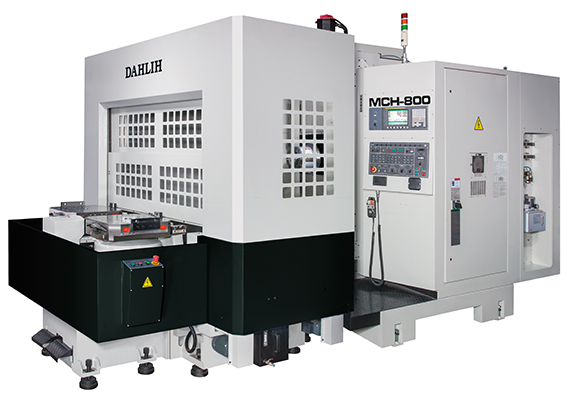

DAH LIH - MCH-800

CNC Horizontal Machining Centre

Features

  • For optimum reliability a shuttle type APC Automatic Pallet Changer design uses a hydraulic-driven shuttle arm for pallet changes.
  • The column, assisted by a pneumatic system for the Z-axis slideway reduces friction of the column feed by a semi-floating way design.
  • A direct gear drive spindle combined with headstock mounted on the sliding surface of the column with 8-faces wrap-around design enhances rigidity allowing heavy cutting.
  • Choice of 60, 90 or 120-tool chain type tool magazine.

Dah Lih MCH-500, 800 (022-D2-00-008 04'2015).pdf

Specifications: DAH LIH - MCH-800

Related Products:

TRAVELS METRIC IMPERIAL
X-Axis (longitudinal) 1350 mm 53.14"
Y-Axis (vertical) 1000 mm 39.37"
Z-Axis (cross) 1000 mm 39.37"
Distance spindle nose to table centre 200 - 1200 mm 7.87 - 47.24"
Distance spindle centre to table surface 50 - 1050 mm 1.96 - 41.33"
Guideway type X-Axis box way box way
Guideway type Y-Axis box way box way
Guideway type Z-Axis box way box way
APC AUTOMATIC PALLET CHANGER - Shuttle Type
Pallet size 800 x 800 mm 31.49 x 31.49"
Min indexing angle B-Axis 1° (*.001°) 1° (*.001°)
Max table load 2000 kg 4409 lb
FEEDRATES
Rapid traverse X-Axis 10 M/min 393.70"/min
Rapid traverse Y-Axis 10 M/min 393.70"/min
Rapid traverse Z-Axis 10 M/min 393.70"/min
Cutting feedrate 5000 mm/min 197"/min
Min input increment 0.001 mm/min 0.0001"
SPINDLE
Drive system gear drive gear drive
Spindle motor (30 min rating) upgrade 18.5kW (22kW) upgrade 25hp (30hp)
Taper CAT50 CAT50
Speed range 6000 rpm 6000 rpm
Drive range two gears variable two gears variable
Max spindle torque 585Nm 585Nm
ATC AUTOMATIC TOOL CHANGER - Arm Type
Tool magazine capacity 60 tools (*90/120) 60 tools (*90/120)
Max tool weight 20 kg 44.09 lb
Max tool length 500 mm 19.69"
Max tool diameter ø110 mm ø4.33"
Max tool diameter (adjacent empty) ø245mm ø9.64"
Tool selection bi-directional bi-directional
DRIVE MOTORS
Feed drive X-Axis 4.2kW 5.6hp
Feed drive Y-Axis 4.2kW 5.6hp
Feed drive Z-Axis 4.2kW 5.6hp
GENERAL
Electrical approval CSA SPE-1000 CSA SPE-1000
Power required 45kVA 45kVA
Voltage required 600V or 220V 600V or 220V
Air pressure required 5-7 bar 80-110 psi
Coolant tank capacity 340 L 90 US gal
CONTROLLER
CNC Control FANUC FANUC
*Option
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.

Standard Accessories

  • 60-tool hydraulic type ATC
  • Automatic pallet changer with manual rotation
  • Automatic lubrication equipment
  • Enclosed splash guard
  • Coolant equipment
  • Spindle oil chiller
  • Chip auger-spiral (screw) type front + back of table
  • Removable MPG manual pulse generator
  • Spindle load meter
  • Spindle speed meter
  • Automatic power off
  • Linear scale X, Y & Z axes
  • Electric cabinet heat exchanger
  • Call light (3-color)
  • LED Work light
  • Door inter-lock safety switch
  • Levelling bolts, nuts and pads
  • Tool kit
  • Transformer

Included Accessories

  • Set of pull studs
  • Coolant and air gun
  • Coolant through spindle (20 bar)
  • Shower coolant
  • Oil skimmer system
  • Chip conveyor-flat type front L side discharge
  • Chip wagon

Optional Accessories

  • 90-tool hydraulic type ATC
  • 120-tool hydraulic type ATC
  • Larger spindle motor 35hp
  • BT50 6000rpm gear drive spindle
  • CAT50 10000rpm built-in spindle
  • 300mm column extension, Y-Axis travel 1300mm
  • Extra pallet 800 x 800mm
  • Larger pallet 1000 x 1000mm
  • Six pallet pool
  • Coolant through spindle with filter (50 bar pressure)
  • Oil hole coolant
  • Oil mist collection system
  • Automatic tool measuring device
  • Automatic workpiece measuring device
  • Tool breakage detection device
  • Continuous rotation B-Axis, 0.001°
  • Linear scale for continuous B-Axis (+/-5 sec)
