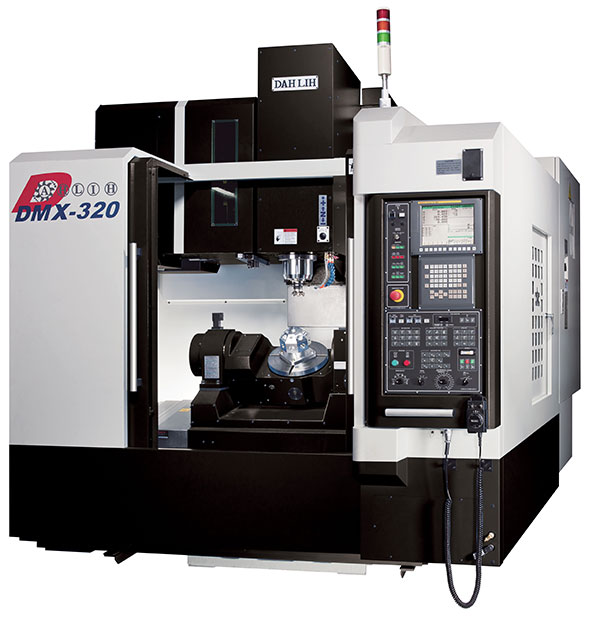

CNC Vertical Machining Centre 5-Axis

Features

  • Extra wide column base provides a solid foundation for precision machining.
  • All major castings are designed through “Finite Element Analysis” software that ensures excellent machine rigidity and cutting accuracy.
  • The feed system on three axes is by a separate construction for reducing ball screw length, while ensuring excellent rotational inertia during high speed cutting.
  • The Z-Axis slideway is mounted standard with a linear roller guideway.
  • The X and Y-axes slideways are upgraded to linear roller guideways.
  • Span on Z-Axis linear way is increased to 370 mm for guaranteed stability.
  • Span on Y-Axis linear way is increased to 760mm.

Dah Lih DMX-320 (022-D2-00-019 04'2011).pdf

Specifications: DAH LIH - DMX-320

4TH / 5TH AXIS - Built-in METRIC IMPERIAL
Table diameter ø320 mm ø12.59"
Max workpiece size ø320 x 280 mm ø12.59 x 11.02"
Max table load 150 kg 330.69 lb
T-slot number (size) 4 (12 mm H7) 4 (0.47" H7)
Torque 25 kg-m 180 lb-ft
A-Axis (tilting axis)
Angle +30° to -120° +30° to -120°
Max speed 16 rpm 16 rpm
Brake type double drum type double drum type
C-Axis (rotating axis)
Angle 360° 360°
Max speed 16 rpm 16 rpm
Brake type drum type drum type
TRAVELS
X-Axis travel 600 mm 23.62"
Y-Axis travel 550 mm 21.65"
Z-Axis travel 500 mm 19.68"
Distance spindle nose to table top 50 - 550 mm 1.96 - 21.65"
Guideway type X-Axis upgrade to linear roller upgrade to linear roller
Guideway type Y-Axis upgrade to linear roller upgrade to linear roller
Guideway type Z-Axis linear roller linear roller
FEEDRATE
Rapid traverse X-Axis 40 M/min 1574.79"/min
Rapid traverse Y-Axis 40 M/min 1574.79"/min
Rapid traverse Z-Axis 30 M/min 1181.09"/min
Cutting feedrate 18 M/min 709"/min
Min input increment 0.001 mm 0.0001"
SPINDLE
Drive system direct-drive direct-drive
Spindle motor (30 min rating) upgrade 15kW (18.5kW) upgrade 20hp (25hp)
Taper BBT40, Big Plus BBT40, Big Plus
Speed upgrade 15000 rpm upgrade 15000 rpm
TOOL CHANGER - Arm Type
Tool magazine capacity 24 tools (*30/32/40) 24 tools (*30/32/40)
Max tool weight 7 kg 15.43 lb
Max tool length 265 mm 10.44"
Max tool diameter ø95 mm ø3.75"
Max tool diameter (adjacent empty) ø185 mm ø7.29"
Tool selection random random
Tool to tool change time 2 sec 2 sec
ACCURACY
Positioning accuracy 0.01 mm 0.0004"
Repeatability accuracy 0.005 mm 0.0002"
MOTORS
Feed drive X-Axis 4kW 5.3hp
Feed drive Y-Axis 4kW 5.3hp
Feed drive Z-Axis 4kW 5.3hp
GENERAL
Electrical approval CSA SPE-1000 CSA SPE-1000
Power required 35kVA 35kVA
Voltage required 600V or 220V 600V or 220V
Air pressure required 5-7 bar 75-110 psi
Coolant tank capacity 280 L 73.96 US gal
CONTROLLER
CNC Control FANUC/HEIDENHAIN FANUC/HEIDENHAIN
*Option
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.

Standard Accessories

  • 24-tool CAM type ATC
  • Automatic lubrication equipment
  • Enclosed splash guard
  • Coolant and air gun
  • Coolant equipment
  • Coolant around spindle
  • Spindle oil chiller
  • Chip auger, both sides of base
  • Removable MPG manual pulse generator
  • 5th Axis control with 4-Axis simultaneous function
  • Automatic power off
  • High resolution Heidenhain scale for rotary & tilting axes
  • Electric cabinet heat exchanger
  • Alarm buzzer
  • Call light (3-color)
  • LED Work light
  • Door inter-lock safety switch
  • Levelling bolts, nuts and pads
  • Tool kit
  • Transformer

Included Accessories

  • Set of pull studs
  • 15000 rpm direct drive spindle 18.5kW, 25hp
  • Coolant through spindle (20 bar)
  • Powerful coolant pump (6 bar)
  • Air through spindle system
  • External air blast
  • Oil skimmer system
  • Chip flush/wash system
  • Chip conveyor-spiral (screw) type front L side discharge + bin
  • Automatic centering device
  • Automatic tool measuring device
  • Linear roller guideway for X & Y axes

Optional Accessories

  • 30, 32 or 40-tool CAM type ATC
  • 12000 rpm direct drive spindle 11kW, 15hp
  • 15000rpm built-in type spindle 15kW, 20hp
  • Column extension 75mm
  • Coolant through spindle (50 bar)
  • Coolant through ball screw
  • Oil mist collection system
  • Chip conveyor-flat type front L side discharge + bin
  • 5-Axis simultaneous function
  • Automatic workpiece measuring device
  • Linear scale for X, Y axes
  • Linear scale for X, Y & Z axes
  • Linear scale for X, Y, Z, B & C axes
  • N2 Cylinder
  • Electric cabinet air conditioner
