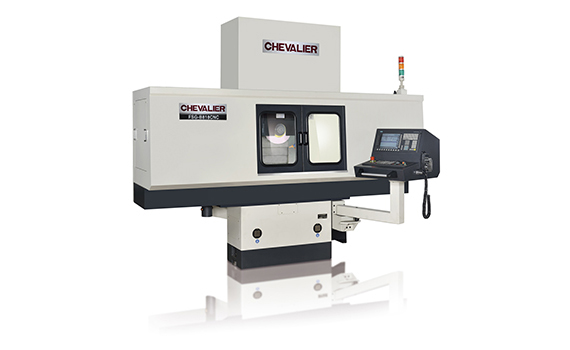

CHEVALIER - FSG-H818CNC

High Efficiency Precision 2-Axis CNC Profile Grinder

Features

The FSG-H818CNC (2-Axis CNC) & FSG-B818CNC (3-Axis CNC) grinding machines are high precision, high efficiency multi-purpose CNC profile grinders. These machines are designed to meet current and future grinding requirements such as intricate profiles and mold components. It is well suited for aircraft, automobile, electronic, medical, machine tool and defense industry parts.

  • The FSG-H818CNC with two mode air cooled hydraulic table drive can be set to low speed for creepfeed grinding or high speed for conventional grinding adding to the machine’s versatility.
  • The FSG-B818CNC table is driven by a precision ballscrew and an AC servo motor to provide precise positioning and achieve optimum speeds needed for creepfeed grinding.
  • Column and wheel head traverse on precision roller bearings and hardened and ground guideways that are pre-loaded and driven by a precision ballscrew, to provide excellent rigidity and precise positioning.
  • Integrated machine structure is well suited for heavy duty grinding. Creepfeed grinding can be utilized to grind deep slots with a single pass through high hardness materials.
  • A Fanuc CNC control provides full automation through programming in order to grind multi-shaped workpieces and complete the entire grinding process. This includes rapid approaching, rough grinding, wheel dressing with auto compensation, and fine grinding in one fully automatic cycle.
  • A forced flood coolant, accompanied by a totally enclosed splash guard efficiently cools the workpiece efficiently and helps prevent thermal damage and workpiece distortion.
  • Crossfeed and elevating axes are positioned by precision ballscrews and an AC servo motor for providing superior accuracy and excellent longevity.

Chevalier FSG-H,B818 C1224CNC (201804).pdf

Specifications: CHEVALIER - FSG-H818CNC

Related Products:

CAPACITY METRIC IMPERIAL
Max grinding length 457 mm 17.99"
Max grinding width 203 mm 7.99"
Max distance from table surface to spindle centerline 480 mm 18.89"
Max table load 200 kg 440 lb
Table size 203 x 457 mm 8 x 18"
T-slot (size x qty) 12 mm x 1 0.47" x 1
Spindle speed 500 - 3500 rpm 500 - 3500 rpm
Grinding wheel (dia x width x bore) ø305 x 31.75 x ø76.2 mm ø12 x 1.25 x ø3"
LONGITUDINAL MOVEMENT (X-AXIS)
Table speed, infinitely variable 0.02-25 M/min 0.065-82 fpm
Max travel 630 mm 24.80"
CROSS TRANSVERSE MOVEMENT (Z-AXIS)
Column feed, infinitely variable 3 M/min 9.84 fpm
Max travel 265 mm 10.40"
Least input increment 0.001 mm 0.0001"
Crossfeed, intermittent/stroke, by NC data 0.001 - 50 mm 0.0001 - 2.0"
WHEEL VERTICAL INFEED (Y-AXIS)
Wheelhead feed, infinitely variable 1 M/min 3.28 fpm
Least input increment 0.001 mm 0.0001"
Auto infeed, by NC data 0.001 - 50 mm 0.0001 - 2.0"
MOTORS
Spindle drive 15kW (*18.75kW) 20hp (*25hp)
X-Axis servo – –
Y-Axis servo 1.8kW 2.5hp
Z-Axis servo 1.8kW 2.5hp
Lubrication pump 0.18kW 1/4hp
Hydraulic pump 1.5kW 2hp
TANK CAPACITY
Hydraulic tank 85 L 22 US gal
Lubrication tank 20 L 5 US gal
GENERAL
Electrical approval CSA SPE-1000 CSA SPE-1000
Power required 20kVA 20kVA
Voltage required 600V or 220V 600V or 220V
Machine weight 3950 kg 8708 lb
CONTROLLER
CNC Control FANUC FANUC
*Option
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.
