PALMARY - GU32X100NC

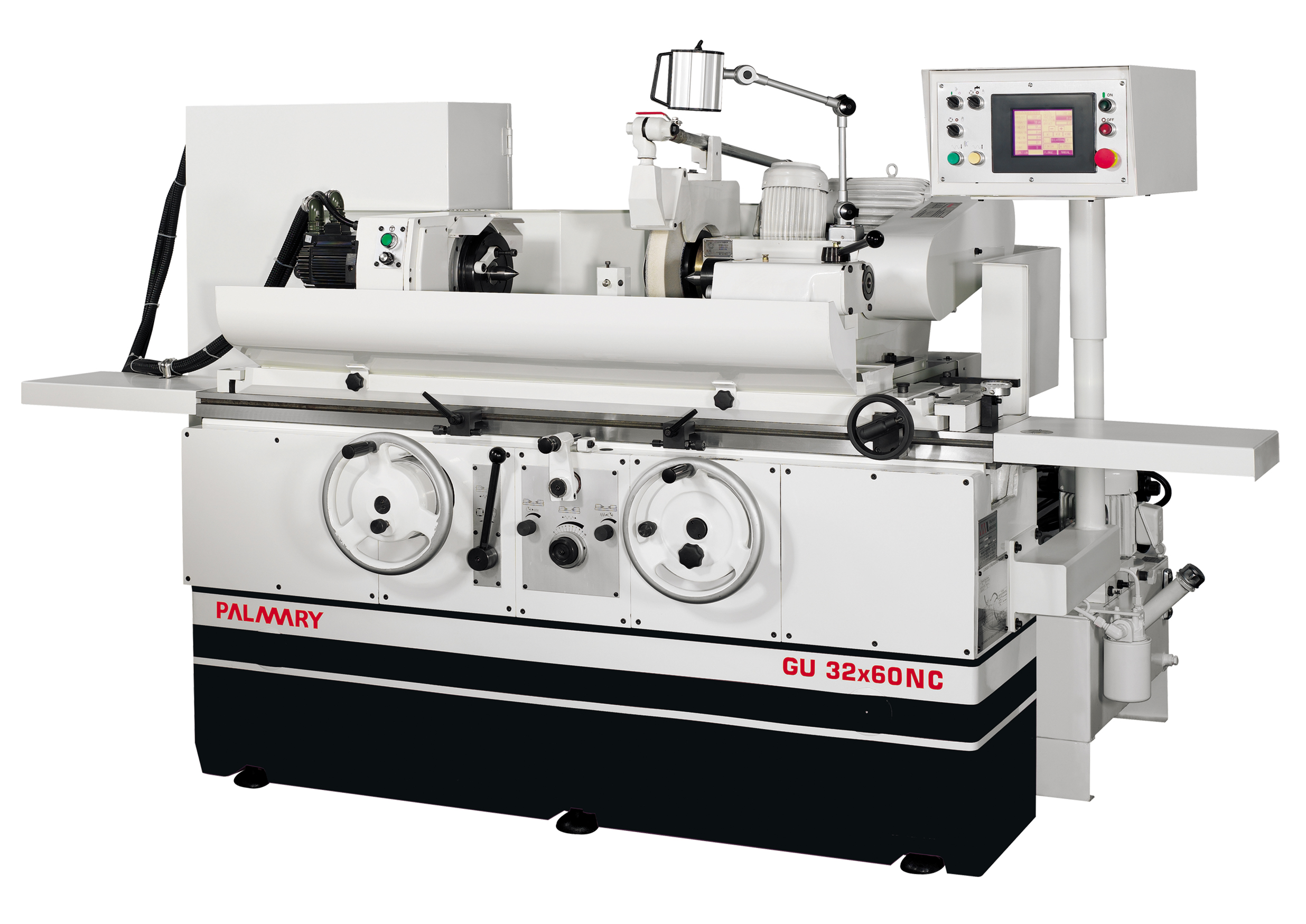

High Precision Cylindrical Grinder - NC Controlled

Features

  • PALMARY's high precision cylindrical grinders are unmatched in structural rigidity, stability, grinding accuracy and operational convenience. Having maximum operational flexibility allows for various grinding operations.
  • The spindle runs on precision bearings, assuring maximum spindle stability. It guarantees outstanding accuracy for external and internal diameter grinding and end face grinding.
  • The grinding wheel spindle is precision machined from high quality alloy steel, it is then normalized, tempered, carburized, sub-zero treated and lastly precision ground and mirror-effect treated.
  • Special hydrostatic bearings ideal for precision grinding work, allows for high speed with no friction between metals, no heat generation, deformation-free to maintain extra high accuracy for continual use.
  • One grinder with various grinding applications such as straight plunge, shoulder, traverse, end face, taper grinding and internal grinding function (included option).

Specifications: PALMARY - GU32X100NC

Related Products:

CAPACITY METRIC IMPERIAL
Distance between centres 1000 mm 40"
Swing over table 320 mm 12.59"
Max load of centres 100 kg 220 lb
Max external grinding diameter 320 mm 12.59"
WHEEL HEAD
Swivel angle ±30° ±30°
Manual distance X-Axis travel 160 mm 6.29"
Auto rapid advance X-Axis travel 40 mm 1.57"
Sliding seat supplementary displacement X-Axis 95 (total 295 mm) 3.74" (total 11.61")
Min setting unit 0.001 mm 0.0001"
One turn of handwheel 2 mm 0.080"
– per graduation 0.005 mm 0.0002"
NC feed range 0 - 99 mm 0 - 3.89"
GRINDING WHEEL
O.D. x width x I.D. ø355 x 50 x ø127 mm ø14 x 2 x ø5"
Grinding wheel speed (belt-type) 1800 rpm 1800 rpm
WORK SPINDLE HEAD
Swivel angle 120° (+90°, -30°) 120° (+90°, -30°)
Centre taper upgrade MT5 upgrade MT5
Spindle speeds (variable) 10 - 350 rpm 10 - 350 rpm
Max load of spindle (tool holder included) 35 kg 77 lb
TAILSTOCK
Centre taper MT4 MT4
Stroke 25 mm 0.98"
TABLE
Swivel angle -2°, +8° -2°, +8°
Z-Axis travel 1060 mm 42"
Traverse speed 50 - 4000 mm/min 1.96 - 157.48"/min
Auto reciprocate min stroke 8 mm 0.31"
Feed of one turn of handwheel (2-step) 20 mm (2mm) 0.787" (0.078")
MOTORS
Grinding wheel spindle 3.75kW (4P) 5hp
Workhead spindle 1.3kW (AC Servo) 1 3/4hp (AC Servo)
Hydraulic pump 0.75kW (4P) 1hp
Wheel spindle lubrication pump 0.18kW (4P) 1/4hp
Coolant pump 0.18kW(2P) 1/4hp
Internal grinding spindle 0.75kW(2P) 1hp
TANK CAPACITY
Grinding wheel spindle lubrication tank 12 L 3.17 US gal
Hydraulic fluid tank 46 L 12.15 US gal
Coolant tank 120 L 31.70 US gal
GENERAL
Electrical rating 600V 15Amp 3Ph 60Hz 600V 15Amp 3Ph 60Hz
Electrical approval CSA SPE-1000 CSA SPE-1000
PHSR exemption letter valid in Ontario valid in Ontario
Weight 3200 kg 7055 lb
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.

Standard Accessories

  • Grinding wheel and flange (1 set)
  • Diamond tool holder - table mount (1pc)
  • Tool kit (1 set)
  • Carbide tipped work centres (2pcs)
  • Coolant equipment
  • Hydraulic tank with pump
  • LED Work light
  • Levelling bolts, nuts & pads

Included Accessories

  • Magnetic coolant separator with paper filter
  • Extra wheel flange and weights
  • Internal grinding attachment with 20000 rpm spindle
  • Diamond tool holder - tailstock mount
  • Cam locked driving dogs (6pcs/set)
  • 7" 3-Jaw scroll chuck
  • Wheel balancing stand with arbor

Optional Accessories

  • Alternate spindle rpm for internal grinding attachment
  • Diamond tool holder for internal and external grinding wheel dressing; options: sideward or upward open type
  • Angular truing device
  • Radius truing device
  • Work steady rest (2pcs/set)
  • 2-Point steady rest
  • 3-Point steady rest
  • 8" 4-Jaw chuck
  • Wheel forming device (manual, no auto compensation)
  • Wheel forming device (auto compensation)
