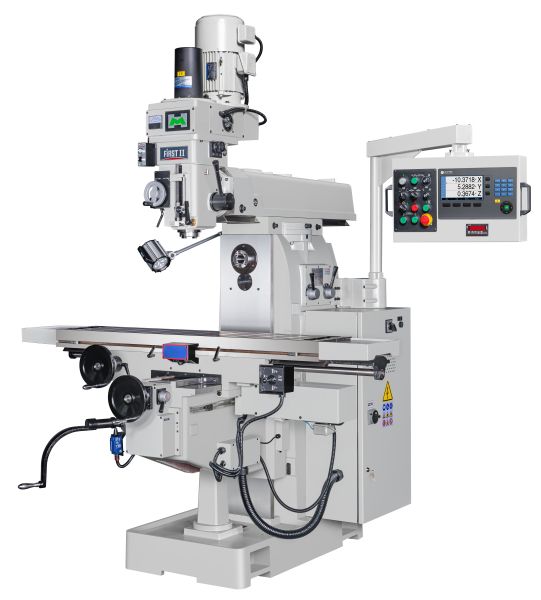

FIRST II - PB-VHS300AF

Heavy Duty Vertical/Horizontal Variable Speed Milling Machine

Features

  • Hardened and ground table and knee surface
  • 5HP Inverter drive vertical spindle
  • Quill diameter 110mm
  • X & Y-Axis ball screws driven by shared inverter
  • X & Y-Axis digital feed meter
  • Z-Axis box way with rapid up and down
  • 2-Axis Acu-Rite readout built into pendant

First II PB-VHS300AF (20260429).pdf

Specifications: FIRST II - PB-VHS300AF

Related Products:

TRAVEL METRIC IMPERIAL
X-Axis manual / automatic 1130 / 1120 mm 44.48 / 44.09"
Y-Axis manual / automatic 368 / 356 mm 14.5 / 14"
Z-Axis manual / automatic 450 / 450 mm 17.71 /17.71"
Guideway type X / Y / Z dovetail / square / box dovetail / square / box
Bedway type X / Y / Z hardened & ground Turcite-B hardened & ground Turcite-B
TABLE
Work surface 1470 x 300 mm 57.87 x 11.81"
T-slot number (width x pitch) 3 (16 x 80 mm) 3 (0.63 x 3.15")
Max table load 450 kg 992 lb
VERTICAL SPINDLE
Taper ISA40 ISA40
Spindle drive motor 5hp (Inverter) Yaskawa 5hp (Inverter) Yaskawa
Spindle speed (variable) 60 - 3600 rpm 60 - 3600 rpm
Quill travel 140 mm 5.51"
Quill diameter Ø110 mm Ø4.33"
Quill feeds 0.035/0.07/0.14 mm/rev 0.0014/0.0028/0.0056"/rev
Head swivel R & L 45° 45°
Head swivel F & B - -
Overarm travel 711 mm 28"
Overarm swivel 360° 360°
Spindle nose to table 76 - 533 mm 3 - 21"
Spindle centre to column surface 127 - 889 mm 5 - 35"
HORIZONTAL SPINDLE
Taper ISA40 ISA40
Horizontal spindle drive motor 5hp 5hp
Spindle speed 75 - 1730 rpm (9 steps) 75 - 1730 rpm (9 steps)
Spindle center to table surface 0 - 450 mm 0 - 17.71"
Spindle center to overarm surface
FEED SYSTEM
Longitudinal feed (variable) 51 - 1778 mm/min 2 - 70"/min
Cross feed (variable) 51 - 1778 mm/min 2 - 70"/min
Vertical rapid feed 430 mm/min 16.92"/min
Longitudinal feed motor 1/2hp (shared inverter) 1/2hp (shared inverter)
Cross feed motor 1/2hp (shared inverter) 1/2hp (shared inverter)
Vertical feed motor 1/2hp 1/2hp
GENERAL
Electrical rating 230V 3Ph 60Hz 230V 3Ph 60Hz
Electrical approval CSA SPE-1000 CSA SPE-1000
PHSR not required letter valid in Ontario valid in Ontario
Weight 2550 kg 5623 lb
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.

Standard Accessories

  • Rubber chip cover - front
  • Rubber chip cover - rear
  • Automatic lubrication system
  • Coolant system
  • Splash / chip tray
  • Z-Axis rapid feed

Included Accessories

  • 2-Axis digital readout installed
  • Align air power drawbar installed
  • LED Machine lamp
  • Transformer 600V-220V (14kVA)

Optional Accessories

  • 3rd-Axis digital readout
