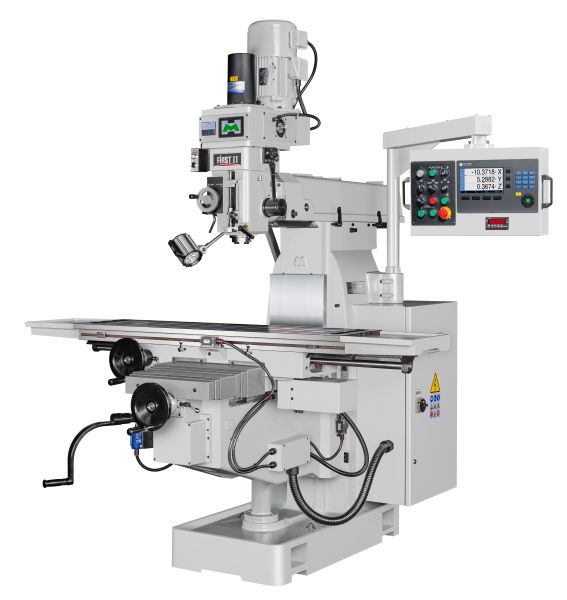

FIRST II - PB-VS500A

Features

• Hardened and ground table
• 5HP Inverter drive vertical spindle
• Quill diameter 110mm
• X & Y-Axis ball screws driven by servo motors
• X & Y-Axis digital feed meter
• Z-Axis box way with rapid up and down
• 2-Axis Acu-Rite readout built into pendant

Specifications: FIRST II - PB-VS500A

Related Products: PB-5EVKA PB-VS300AF PB-VHS300AF PB-VHS500A MetricImperial

TRAVEL	METRIC	IMPERIAL
X-Axis manual / automatic	1120 / 1120 mm	44.09 / 44.09"
Y-Axis manual / automatic	520 / 500 mm	20.47 / 19.68"
Z-Axis manual / automatic	430 / 400 mm	17 / 15.74"
Guideway type X / Y / Z	dovetail / box / box	dovetail / box / box
Bedway type X / Y / Z	hardened & ground Turcite-B	hardened & ground Turcite-B
TABLE
Work surface	1470 x 370 mm	57.87 x 14.56"
T-slot number (width x pitch)	3 (18 x 80 mm)	3 (0.70 x 3.15")
Max table load	500 kg	1102 lb
VERTICAL SPINDLE
Taper	ISA40	ISA40
Spindle drive motor	5hp (Inverter) Yaskawa	5hp (Inverter) Yaskawa
Spindle speed (variable)	60 - 3600 rpm	60 - 3600 rpm
Quill travel	140 mm	5.51"
Quill diameter	Ø110 mm	Ø4.33"
Quill feeds	0.035/0.07/0.14 mm/rev	0.0014/0.0028/0.0056"/rev
Head swivel R & L	45°	45°
Head swivel F & B	-	-
Overarm travel	711 mm	28"
Overarm swivel	360°	360°
Spindle nose to table	120 - 520 mm	4.72 - 20.47"
Spindle centre to column surface	178 - 889 mm	7 - 35"
HORIZONTAL SPINDLE
Taper	-	-
Horizontal spindle drive motor	-	-
Spindle speed	-	-
Spindle center to table surface	-	-
Spindle center to overarm surface	-	-
FEED SYSTEM
Longitudinal feed (variable)	30 - 3000 mm/min	1.18 - 118.11"/min
Cross feed (variable)	30 - 3000 mm/min	1.18 - 118.11"/min
Vertical rapid feed	1150 mm/min	45.27"/min
Longitudinal feed motor	750W (AC Servo)	750W (AC Servo)
Cross feed motor	750W (AC Servo)	750W (AC Servo)
Vertical feed motor	1hp	1hp
GENERAL
Electrical rating	230V 3Ph 60Hz	230V 3Ph 60Hz
Electrical approval	CSA SPE-1000	CSA SPE-1000
PHSR not required letter	valid in Ontario	valid in Ontario
Weight	2350 kg	5180 lb
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.

Standard Accessories

• Metal chip cover - front
• Rubber chip cover - rear
• Automatic lubrication system
• Coolant system
• Splash / chip tray
• Z-Axis rapid feed

Included Accessories

• 2-Axis digital readout installed
• Align air power drawbar installed
• LED Machine lamp
• Transformer 600V-220V (14kVA)

Optional Accessories

• 3rd-Axis digital readout
