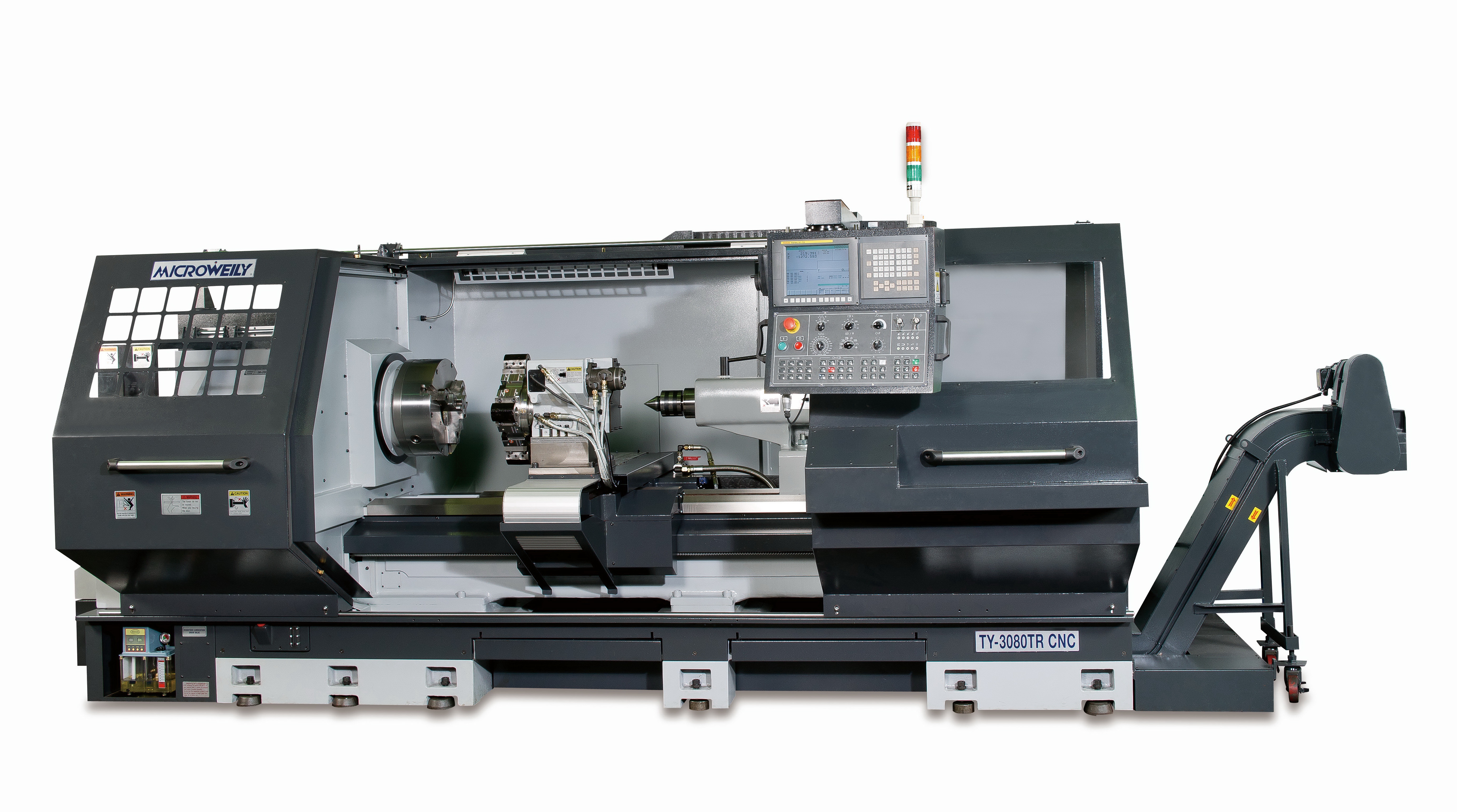

CNC lathes are inspected by using advanced laser equipment ensuring machining accuracy and repeatability. Linear accuracy of the machine is maintained using CNC's leadscrew compensation function.
| CAPACITY | METRIC | IMPERIAL | |
| Distance between centres | 1500 mm | 59.05" | |
| Swing over bed | 660 mm | 25.98" | |
| Swing over cross slide | 380 mm | 14.96" | |
| Width of bed | 460 mm | 18.11" | |
| HEADSTOCK | |||
| Spindle nose | D1-11 | D1-11 | |
| Spindle bore | 105 mm | 4.13" | |
| Speed range | D1-11, 12-1200 rpm | D1-11, 12-1200 rpm | |
| Spindle bearing type | taper roller bearing | taper roller bearing | |
| Spindle taper in nose | MT8 | MT8 | |
| Spindle taper in sleeve | MT5 | MT5 | |
| TRAVELS | |||
| Longitudinal travel Z-Axis | 1500 mm | 59.05" | |
| Cross slide travel X-Axis | 500 mm | 19.68" | |
| Cross slide dimension | 1000 x 258 mm | 39.37 x 10.15" | |
| Ballscrew diameter Z-Axis | 50 mm | 1.96" | |
| Ballscrew diameter X-Axis | 32 mm | 1.25" | |
| FEEDRATE | |||
| Rapid traverse X,Z-Axis | 10 M/min | 393.70"/min | |
| TAILSTOCK | |||
| Quill diameter | 90 mm | 3.54" | |
| Quill travel | 200 mm | 7.87" | |
| Quill taper | MT5 | MT5 | |
| MOTOR | |||
| Spindle motor | Fagor 18.64kW / Fanuc 14.91kW | Fagor 25hp / Fanuc 20hp | |
| Z-Axis Servo | AC 2.0kW | 2.6hp | |
| X-Axis Servo | AC 1.5kW | 2hp | |
| Coolant pump | upgrade 0.55kW | upgrade 3/4hp | |
| GENERAL | |||
| Electrical approval | CSA SPE-1000 | CSA SPE-1000 | |
| Power required | 25kVA | 25kVA | |
| Voltage required FAGOR / FANUC | 600V or 400V / 220V | 600V or 400V / 220V | |
| Air pressure required | 7 bar | 100psi | |
| Coolant tank capacity | 80 L | 21 US gal | |
| CONTROLLER | |||
| CNC Control | FAGOR / FANUC | FAGOR / FANUC | |
| The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice. | |||
