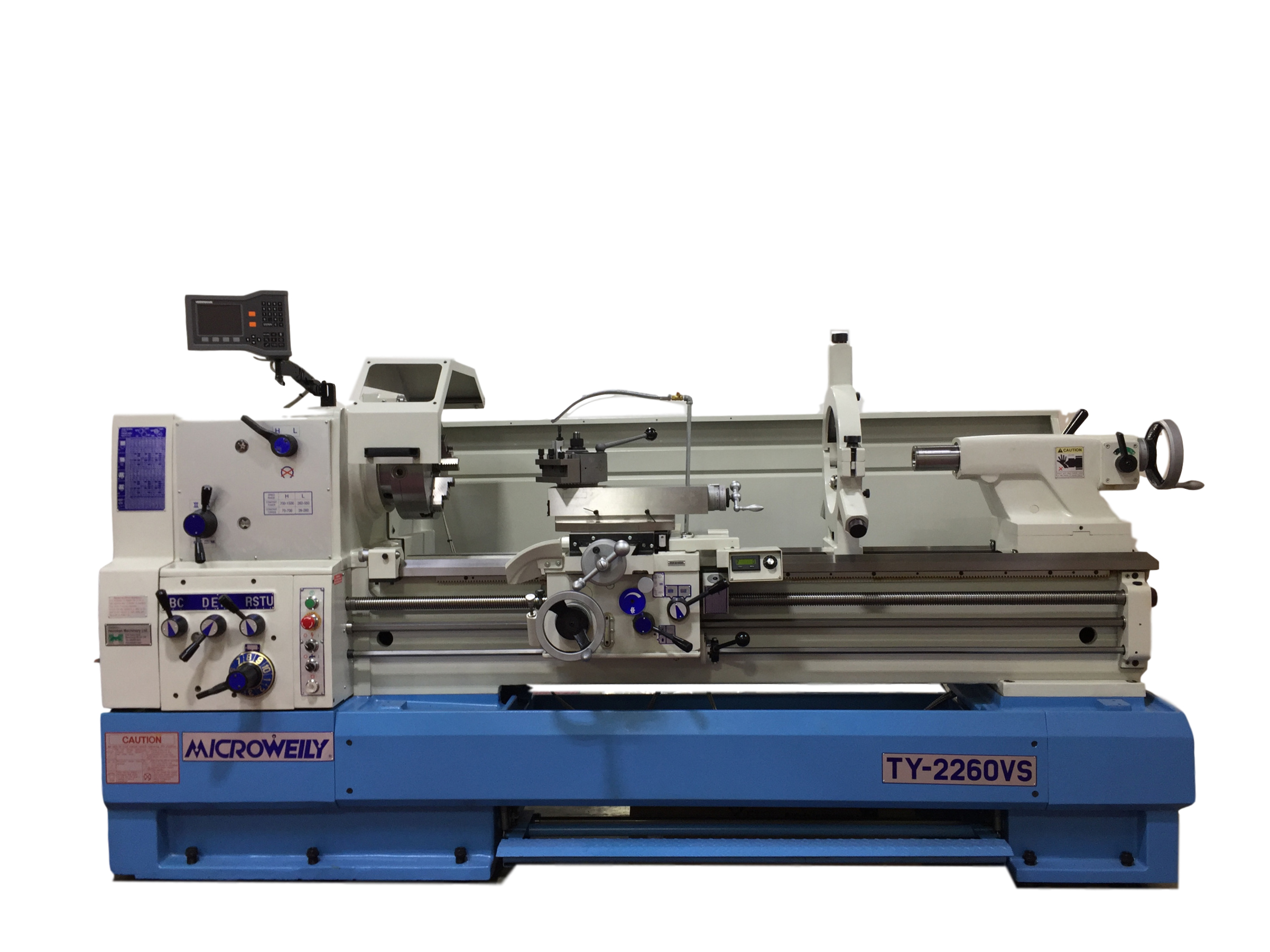

MICROWEILY - TY-2660VS

Hardened and precision ground gears and bed ways.
The cross slide is induction hardened to HRC 52° and precision ground.
The slideways between the saddle and bed are TURCITE B coated, reducing friction and saving on power consumption.
Two speed tailstock is standard.

Microweily Company Profile

CAPACITY	METRIC	IMPERIAL
Distance between centres	1530 mm	60.23"
Swing over bed	660 mm	25.98"
Swing over cross slide	450 mm	17.71"
Swing in gap	845 mm	33.26"
Length of gap in front of face plate	320 mm	12.59"
Centre height	330 mm	12.99"
Bed width	400 mm	15.74"
HEADSTOCK
Spindle bore	104 mm	4.09"
Spindle nose	D1-8	D1-8
Spindle taper in nose	MT8	MT8
Spindle taper in sleeve	MT5	MT5
Speed range H	70 - 1500 rpm	70 - 1500 rpm
Speed range M	-	-
Speed range L	26 - 550 rpm	26 - 550 rpm
CARRIAGE & COMPOUND
Cross slide travel	380 mm	14.96"
Compound rest travel	255 mm	10.03"
Leadscrew diameter, thread	ø1 1/2", 4 TPI	ø1 1/2", 4 TPI
THREADS & FEEDS
Imperial pitches 60 Pos	2-112 TPI	2-112 TPI
Metric pitches 60 Pos	0.2-14mm Pitch	0.2-14mm Pitch
Diametral pitches 50 Pos	4-112 DP	4-112 DP
Module pitches 50 Pos	0.2-7 MP	0.2-7 MP
Cross feeds 50 Pos	0.0185-0.52mm/rev	0.0007-0.01935"/rev
Longitudinal feeds 50 Pos	0.037-1.04mm/rev	0.0014-0.0387"/rev
TAILSTOCK
Quill diameter	ø75 mm	ø2.95"
Quill travel	160 mm	6.29"
Quill taper	MT5	MT5
MOTORS
Spindle motor	15hp	15hp
Coolant pump	1/8hp	1/8hp
GENERAL
Electrical rating	220V 35Amp 3Ph 60Hz	220V 35Amp 3Ph 60Hz
Electrical approval	CSA SPE-1000	CSA SPE-1000
PHSR exemption letter	valid in Ontario	valid in Ontario
Weight	2380 kg	5247 lb
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.
