KAO MING - KMC-1445G

Features

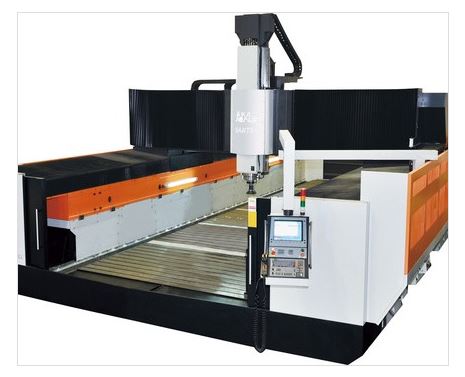

Designed and engineered with heavy cutting capacity and high efficiency in mind, the KMC-G Series gantry type machining center by Kao Ming features an advanced gantry type construction, making large workpiece machining easier. Axis feed is driven through a rack and pinion transmission mechanism, allowing rapid traverse rate reaching up to 30 m/min without vibration. With Kao Ming KMC-G series, you will stay competitive in large workpiece machining.

• Gantry type construction with fixed table and traveling crossbeam.
• Rigid structure is especially ideal for extra-long and large workpiece machining.
• Uses 25% less floor space compared to a conventional machine.
• Fixed table provides a maximum loading capacity of 10000 kgf/m².
• A step-slideway design is used for the X and Y-Axes.
• Z-Axis ball screw supports are integrated with the saddle casting.
• 2-position AAC Automatic Attachment Head Changer is standard with 3-5 position optional.

Specifications: KAO MING - KMC-1445G
