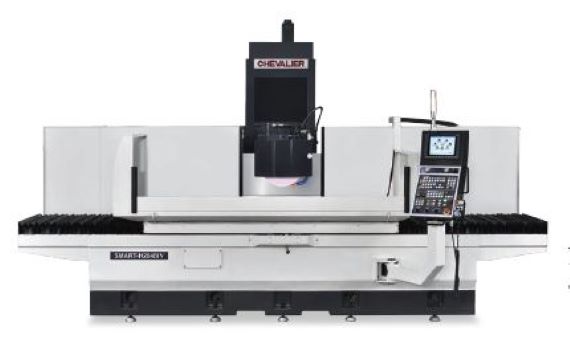

CHEVALIER - SMART-B2048IV

Multi-function 3-Axis CNC Surface Grinder

Features

Highly accurate, heavy load, intelligent CNC grinding

  • Chevalier’s SMART-IV Series now includes a larger-size range of models, which have newly designed features: a column-type structure to further reduce vibration and achieve higher accuracy; a spindle that can withstand heavy load grinding; and a double-V slide rail for smooth, stable longitudinal movements.This machine uses a large diameter, cartridge–type spindle that is air–cooled, precisely balanced and totally enclosed spindle motor. Providing maximum support to the spindle are six pieces of Class 7
  • The SMART iControl features intelligent functions such as, intelligent grinding assistant system, intelligent auto wheel dressing, grind CAM built-in function, SMART grinding path, TaskLink+, in-machine dynamic balancing, workable smoothing function, and in-machine process monitoring screen.
  • These CNC grinding machines are designed to be user friendly. Chevalier’s exclusive SMART iControl incorporates production efficiency, which simplifies operation procedures and greatly enhances the performance. Combined with TaskLink+, it allows operators to easily create their own programs for generating complex grinding tasks in a single cycle.
  • These larger sized machines are designed for heavy load grinding thus maintaining precision and stability for highly accurate workpieces along with finer finishes.

Specifications: CHEVALIER - SMART-B2048IV

Related Products:

CAPACITY METRIC IMPERIAL
Grinding length 1200 mm 47.24"
Grinding width 500 mm 19.68"
Max distance from table surface to spindle center 850 mm 33.46"
Max table load 1250 kg 2756 lb
Table size 500 x 1200 mm 19.68 x 47.24"
T-slot number (width x pitch) 3(14 x 170mm) 3(0.55 x 6.69")
Distance between table and ground 900 mm 35.43"
Spindle speed 500 - 2200 rpm 500 - 2200 rpm
Grinding wheel (dia x width x bore) ø405 x 50 x ø127 ø16 x 2 x ø5"
LONGITUDINAL MOVEMENT (X-AXIS)
Rapid travel 0-20 M/min 0-65.61 fpm
Max travel 1300 mm 51.18"
CROSS TRANSVERSE MOVEMENT (Z-AXIS)
Rapid travel 0-5 M/min 0-16.4 fpm
Max travel 560 mm 22.04"
Minimum increment input 0.001 mm 0.0001"
WHEEL HEAD ELEVATING MOVEMENT (Y-AXIS)
Rapid travel 0-2 M/min 0-6.56 fpm
Max travel 675 mm 26.57
Least increment input 0.001 mm 0.0001"
MOTORS
Spindle motor 11kW 15hp
X-Axis drive Servo 7.5kW Servo 10hp
Y-Axis drive Servo 3.1kW Servo 4.1hp
Z-Axis drive Servo 2.4kW Servo 3.2hp
Hydraulic pump - -
TANK CAPACITY
Hydraulic tank 85 L 22.45 US gal
GENERAL
Electrical approval CSA SPE-1000 CSA SPE-1000
Power required 40kVA 40kVA
Voltage required 600V or 220V 600V or 220V
Air pressure required 6 bar 86 psi
Net Weight 6400 kg 14110 lb
CONTROLLER
CNC Control CHEVALIER SMART (PC Based) CHEVALIER SMART (PC Based)
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.
