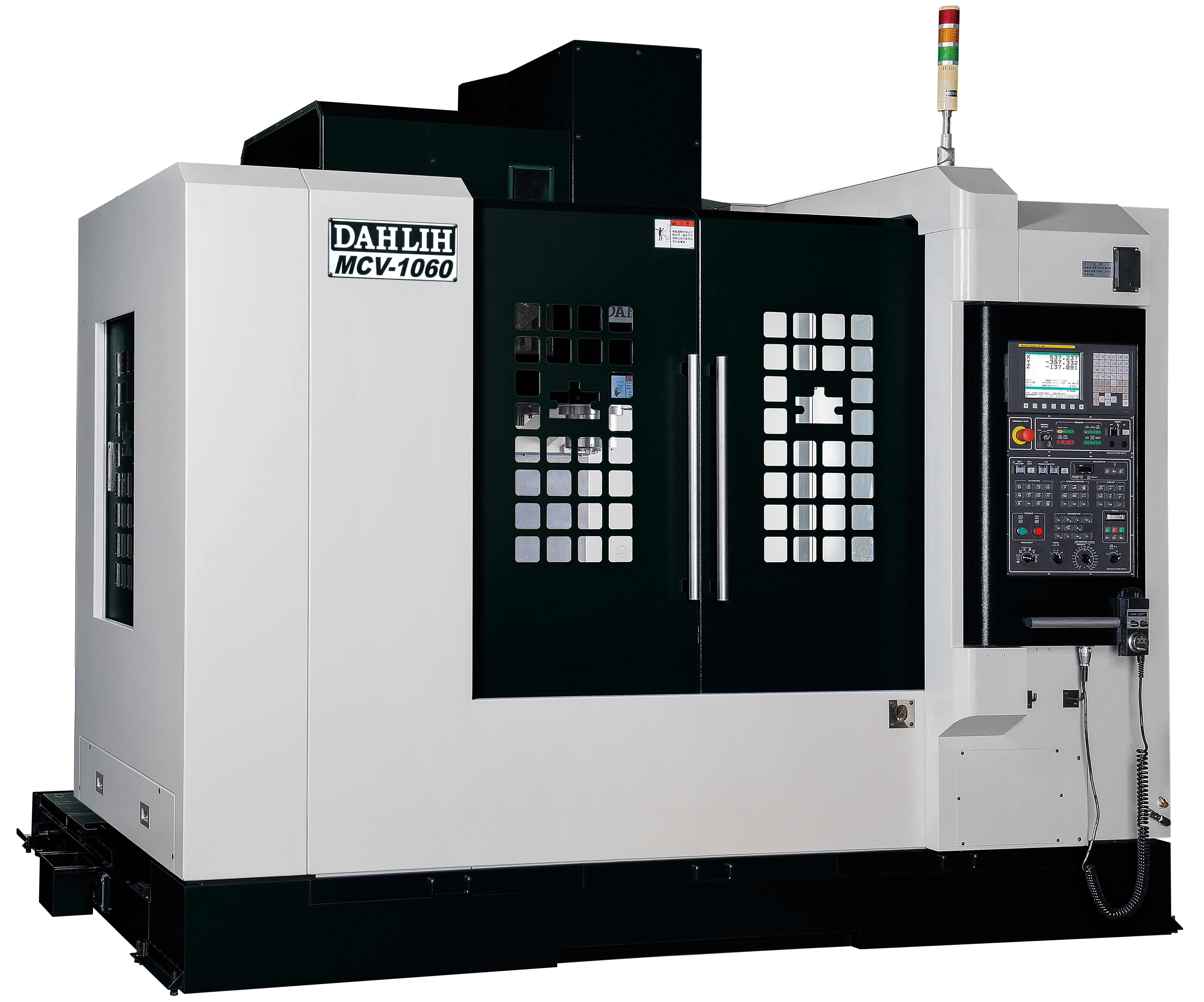

DAH LIH - MCV-1060/5AXIS

CNC Vertical Machining Centre 5-Axis

Features

  • Equipped with a high accuracy, high rigidity ø280mm 4+5th axis tilting rotary table. For added flexibility the rotary table is also removable.
  • Major casting parts designed and analyzed by advanced “Finite Element Analysis” for optimum structural rigidity and accuracy.
  • All structural parts manufactured from high quality cast iron, assuring the best possible stability of the structure.
  • Extra wide column base combined with rigid structure provides a solid foundation for precision machining.
  • Symmetrical construction of box type column and base combined with scientific cross ribs reinforcement results in greater structural rigidity and reduces thermal deformation to a minimum.
  • The extra-large span between Y-axis slideways maintains gravity point in machine base when table travels on X-axis, thus preventing overhang problems on saddle and increasing machining stability.
  • High rigidity, high precision, minimum vibration and minimum noise.
  • Compact construction but still offers great machining capacity.
  • Coolant jets around spindle nose provide excellent cooling for cutting tool and workpiece.
  • Chip augers on both sides of base for quick chip removal effectively prevents thermal deformation of the structure through chip heat.

Dah Lih MCV-1060 (022-D2-00-023 12'2015).pdf

Specifications: DAH LIH - MCV-1060/5AXIS

Related Products:

TRAVELS METRIC IMPERIAL
X-Axis travel 1060 mm 41.73"
Y-Axis travel 560 mm 22.04"
Z-Axis travel 550 mm 21.65"
Distance from spindle nose to table top 150 - 700 mm 5.90 - 27.55"
Guideway type X-Axis linear roller linear roller
Guideway type Y-Axis linear roller linear roller
Guideway type Z-Axis linear roller linear roller
TABLE
Table working surface 1200 x 580 mm 47.24 x 22.83"
T-slot number (width x pitch) 5 (18 x 100 mm) 5 (0.7 x 3.93")
Max table load 1000 kg 2204 lb
ROTARY TABLE 2-AXIS DMTRT
Table diameter ø280mm ø11.02"
Min indexing increment 0.001° 0.001°
Tilt angle –20° to +110° –20° to +110°
Rotation 360° 360°
FEEDRATE
Rapid traverse X-Axis 40 M/min 1574.80"/min
Rapid traverse Y-Axis 40 M/min 1574.80"/min
Rapid traverse Z-Axis 30 M/min 1108.10"/min
Cutting feedrate 0 - 10 M/min 0.04-394"/min
Min input increment 0.001 mm 0.0001"
SPINDLE
Drive system direct drive direct drive
Spindle motor (30 min rating) 7.5kW (11kW) 10hp (14.7hp)
Taper BBT40, Big Plus BBT40, Big Plus
Speed range upgrade 12000 rpm upgrade 12000 rpm
Drive range infinitely variable infinitely variable
Max spindle torque 70Nm 70Nm
TOOL CHANGER - Arm Type
Tool magazine capacity upgrade 30 tools upgrade 30 tools
Max tool weight 7 kg 15.43 lb
Max tool length 300 mm 11.81"
Max tool diameter ø76 mm ø2.99"
Max tool diameter (adjacent empty) ø150 mm ø5.90"
Tool selection random random
Tool to tool change time 1.8 sec 1.8 sec
MOTORS
Feed drive X-Axis 3kW 4hp
Feed drive Y-Axis 3kW 4hp
Feed drive Z-Axis 4kW 5.3hp
GENERAL
Electrical approval CSA SPE-1000 CSA SPE-1000
Power required 25kVA 25kVA
Voltage required 600V or 220V 600V or 220V
Air pressure required 5 -7 bar 75-110 psi
Coolant tank capacity 300 L 79.25 US gal
CONTROLLER
CNC Control FANUC FANUC
The manufacturer reserves the right to modify the design, specifications and/or colour of the machine without prior notice.
Specifications change when equipped with rotary table; restrictions may apply depending on mounting position.

Standard Accessories

  • Automatic lubrication equipment
  • Enclosed splash guard
  • Coolant and air gun
  • Coolant around spindle
  • External air blast
  • Spindle oil chiller
  • Oil skimmer
  • Chip conveyor-spiral type, both sides of base
  • Remote manual pulse generator
  • Automatic power off
  • Electric cabinet heat exchanger
  • Call light (3-color)
  • LED Work light
  • Levelling bolts, nuts and pads
  • Tool kit
  • Transformer

Included Accessories

  • 30-tool CAM type ATC
  • 12000rpm direct drive spindle
  • Set of pull studs
  • Coolant through spindle (20 bar)
  • Air through spindle system
  • Chip flush/wash system
  • Chip conveyor-spiral (screw) type front L side discharge + bin
  • Linear roller guideway
  • 4th + 5th axis connector
  • 4th + 5th axis rotary table
  • Upgraded driver
  • Door inter-lock safety switch

Optional Accessories

  • CAT40 tool shank
  • 32-tool CAM type ATC
  • 40-tool CAM type ATC
  • Note: Maximum tool diameter may change with alternate tool magazine option.
  • 15000 rpm direct drive spindle
  • 15000 rpm built-in type spindle
  • Coolant through spindle (50 bar)
  • Coolant through ball screw
  • Oil mist collection system
  • Chip conveyor-flat type front L side discharge + bin
  • Automatic tool length measuring device
  • Automatic workpiece measuring device
  • Automatic pallet changer
  • Linear scale
  • Z-Axis box guideway
